NTN Tapered Roller Bearing Cone: HM218248, 3 17/32 in Bore, 5.551 in OD, 1.575 in Cone Wd - Tapered Roller Bearing Cones

NTNTapered Roller Bearing Cones

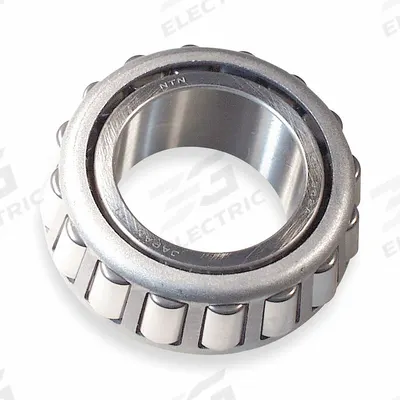

NTN Tapered Roller Bearing Cone: HM218248, 3 17/32 in Bore, 5.551 in OD, 1.575 in Cone Wd

The NTN HM218248 is an inch-system tapered roller bearing cone with a 3 17/32 in bore, 5.551 in OD, and 1.575 in cone width. It features an alloy steel ring and a pressed steel cage, and is designed to pair with cup…

SKU 3G-OTH-118599

Brand

NTN

Item

Tapered Roller Bearing Cone: HM218248, 3 17/32 in Bore, 5.551 in OD, 1.575 in Cone Wd

Category

Tapered Roller Bearing Cones

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

NTN

Manufacturer Part Number

HM218248

Type

HM218248

Bore

3 17/32 in

OD

5.551 in

Cone Wd

1.575 in

Cage Material

Pressed Steel

Ring Material

Alloy Steel

System of Measurement

Inch

Bearing Industry Number

HM218248

Compatible Cup Manufacturer Part Number

HM218210

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

NTN Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The NTN HM218248 is an inch-system tapered roller bearing cone with a 3 17/32 in bore, 5.551 in OD, and 1.575 in cone width. It features an alloy steel ring and a pressed steel cage, and is designed to pair with cup HM218210.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Used in

Common applications for NTN

Automotive driveline — NTN tapered roller bearing assemblies (e.g., 4T-30303) for differential and wheel hub applications

Conveyor systems — NTN 4-bolt flange bearings (e.g., UCF211-200D1) for idler rollers and take-up units

Machine tool spindles — NTN duplex angular contact bearings (e.g., ML7006CVDUJ74S) for high-speed precision rotation

Industrial fans — NTN high-temperature radial ball bearings (e.g., 6004FT150) for oven and dryer exhaust systems

Pump drives — NTN radial ball bearings (e.g., 6008LLBC3/L627) for electric motor and pump shaft support

Agricultural equipment — NTN tapered roller bearing cones (e.g., LM29748L) for gearbox and PTO shaft assemblies

NTN Products

3G Electric supplies NTN tapered roller bearing cones. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.

Browse all NTN products →Contact our engineers →
