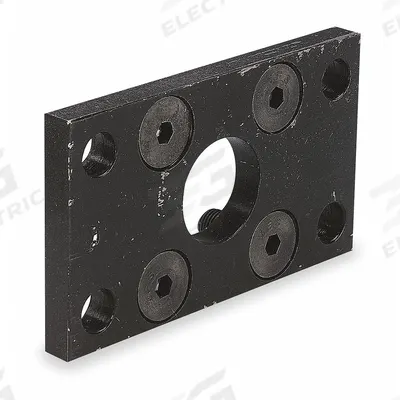

MILLER FLUID POWER Front or Rear Flange Cylinder Mount: 4 in Bore Dia., 1-1/4"-12 Thread Size - Front or Rear Flange Cylinder Mounts
MILLER FLUID POWERFront or Rear Flange Cylinder Mounts

MILLER FLUID POWER Front or Rear Flange Cylinder Mount: 4 in Bore Dia., 1-1/4"-12 Thread Size

The MILLER FLUID POWER Front or Rear Flange Cylinder Mount (MPN HV3-MKJ/H-400-175) is a steel mount designed for a 4 in bore diameter cylinder. It features NFPA MF1 (Front) and NFPA MF2 (Rear) configurations and…

SKU 3G-OTH-156509

Brand
MILLER FLUID POWER
Item
Front or Rear Flange Cylinder Mount: 4 in Bore Dia., 1-1/4"-12 Thread Size
Category
Front or Rear Flange Cylinder Mounts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MILLER FLUID POWER
Manufacturer Part Number
HV3-MKJ/H-400-175
Type
Steel
Thread Size
1-1/4"-12
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MILLER FLUID POWER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MILLER FLUID POWER Front or Rear Flange Cylinder Mount (MPN HV3-MKJ/H-400-175) is a steel mount designed for a 4 in bore diameter cylinder. It features NFPA MF1 (Front) and NFPA MF2 (Rear) configurations and includes (4) mounting bolts with a 1-1/4"-12 thread size.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the MILLER FLUID POWER Front or Rear Flange Cylinder Mount used for?

This steel mount secures a 4 in bore diameter cylinder in NFPA MF1 (front) or MF2 (rear) configurations. It is used in industrial automation, material handling, and hydraulic/pneumatic systems where precise cylinder alignment and load distribution are required.

What are the specifications of the MILLER FLUID POWER HV3-MKJ/H-400-175 mount?

The mount has a 4 in bore diameter, 1-1/4"-12 thread size, and is made of steel. It includes (4) mounting bolts and supports NFPA MF1 (front) and MF2 (rear) flange configurations. The manufacturer part number is HV3-MKJ/H-400-175.

Where to buy MILLER FLUID POWER cylinder mounts worldwide?

3G Electric supplies MILLER FLUID POWER cylinder mounts worldwide. As a global industrial solutions provider, we handle logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this HV3-MKJ/H-400-175 mount.

How to select the correct flange mount for a MILLER FLUID POWER cylinder?

Match the mount bore diameter (4 in) and thread size (1-1/4"-12) to your cylinder. Verify NFPA configuration: MF1 for front flange, MF2 for rear. Ensure the steel mount and (4) bolts align with your system's load and mounting surface requirements.

Used in

Common applications for MILLER FLUID POWER
Manufacturing automation — Miller Fluid Power NFPA tie-rod cylinders (e.g., 1HHV3B40012000) for clamping and positioning in assembly lines.
Material handling — Miller Fluid Power compact hydraulic cylinders (e.g., 1H000065977) for compact lifting and tilting mechanisms.
Packaging machinery — Miller Fluid Power rod clevis mounts (e.g., HV3-MKRC-200/250) for connecting cylinders to packaging press linkages.
Industrial presses — Miller Fluid Power clevis bracket mounts (e.g., HV3-MKBC-200-100) for mounting cylinders in press frames.
Automated guided vehicles — Miller Fluid Power eye bracket mounts (e.g., HV3-MKEB-150) for securing cylinders in steering or lifting systems.
Process equipment — Miller Fluid Power NFPA tie-rod cylinders (e.g., 1HHV3B2500600M) for valve actuation in chemical processing.
