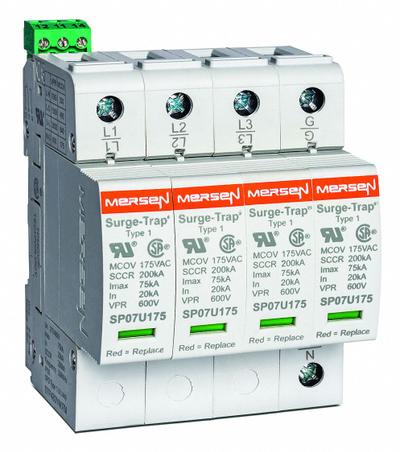

MERSEN Surge Protection Device: Three Phase, 120/208V AC Wye, 4 Poles, 5 Wires - DIN Rail Internal-Mount SPDs

MERSENDIN Rail Internal-Mount SPDs

MERSEN Surge Protection Device: Three Phase, 120/208V AC Wye, 4 Poles, 5 Wires

The MERSEN STP208YN07 is a three-phase DIN Rail internal-mount surge protection device (SPD) rated for 120/208V AC Wye systems with 5 wires and 4 poles. It provides N-G mode protection with a voltage protection…

SKU 3G-OTH-23022

Brand

MERSEN

Item

Surge Protection Device: Three Phase, 120/208V AC Wye, 4 Poles, 5 Wires

Category

DIN Rail Internal-Mount SPDs

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

MERSEN

Manufacturer Part Number

STP208YN07

Type

L-G/L-L/L-N/N-G

Poles

4

Wires

5

AC Wye

120/208V

Voltage

120/208V AC Wye

Filtering

No

Mounting Style

DIN-Rail

Number of Wires

5 Wires

Enclosure Material

Polyethylene Terephthalate

Modes of Protection

N-G

Voltage Protection Rating

600V (N-G)

Short Circuit Current Rating

200kA

Max. Continuing Operating Voltage

175/350 V AC

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

MERSEN Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MERSEN STP208YN07 is a three-phase DIN Rail internal-mount surge protection device (SPD) rated for 120/208V AC Wye systems with 5 wires and 4 poles. It provides N-G mode protection with a voltage protection rating of 600V (N-G), a short circuit current rating of 200kA, and a max. continuing operating voltage of 175/350 V AC. The enclosure is made of polyethylene terephthalate, and the unit does not include filtering.
