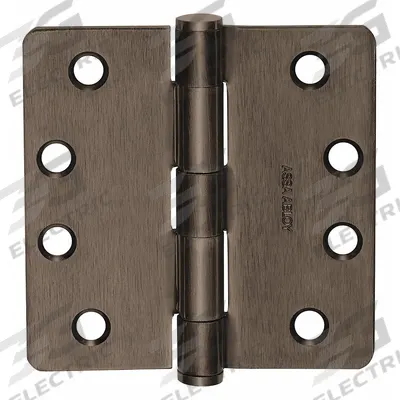

MCKINNEY Butt Hinge: Steel, Full Mortise
The MCKINNEY Butt Hinge is a full mortise-mount hinge with a 1 11/16 in leaf width, made of steel with a plain bearing type (MPN 69825). This product is a standard industrial hinge for door applications.
SKU 3G-OTH-507732
Need installation or engineering help?
Ask a question
Product Description
The MCKINNEY Butt Hinge is a full mortise-mount hinge with a 1 11/16 in leaf width, made of steel with a plain bearing type (MPN 69825). This product is a standard industrial hinge for door applications.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the MCKINNEY Butt Hinge used for?
The MCKINNEY Butt Hinge is a full mortise-mount hinge designed for industrial door applications. It provides reliable pivoting support for heavy doors in commercial or institutional settings, using a steel construction and plain bearing type for consistent performance.
What are the specifications of the MCKINNEY Butt Hinge 69825?
The MCKINNEY Butt Hinge (MPN 69825) has a leaf width of 1 11/16 in, is made of steel, and features a plain bearing type. It is a full mortise-mount hinge, suitable for standard door installations requiring durable, non-lubricated operation.
Where to buy MCKINNEY Butt Hinge in worldwide?
3G Electric supplies the MCKINNEY Butt Hinge worldwide, handling full logistics and customs clearance for global delivery. As a sourcing partner, we provide this steel full mortise hinge with plain bearing to industrial buyers, ensuring reliable procurement across international markets.
How to install a full mortise butt hinge?
To install a full mortise butt hinge like the MCKINNEY 69825, cut a recess (mortise) into the door edge and frame to match the leaf dimensions. Secure the hinge with screws, ensuring alignment for smooth door swing. Use a template for consistent depth and spacing.
