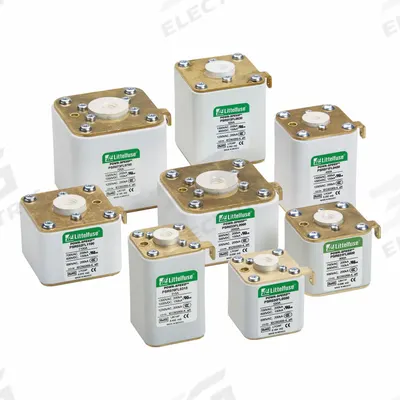

LITTELFUSE Semiconductor Fuse: PSR Series, Very-Fast-Acting, 200 A, 1,300 V AC - Very-Fast-Acting Threaded Flush-End Square Fuses
LITTELFUSEVery-Fast-Acting Threaded Flush-End Square Fuses

LITTELFUSE Semiconductor Fuse: PSR Series, Very-Fast-Acting, 200 A, 1,300 V AC

The LITTELFUSE PSR Series is a very-fast-acting threaded flush-end square fuse rated at 200 A, 1,300 V AC, and 1,000 V DC (MPN PSR070FS0200Z). This semiconductor fuse operates as a very-fast-acting device for AC/DC…

SKU 3G-OTH-25420

Brand
LITTELFUSE
Item
Semiconductor Fuse: PSR Series, Very-Fast-Acting, 200 A, 1,300 V AC
Category
Very-Fast-Acting Threaded Flush-End Square Fuses
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

LITTELFUSE
Manufacturer Part Number
PSR070FS0200Z
Series
PSR
Type
Very-Fast-Acting, 200 A
AC
1,300 V
Voltage Type
AC/DC
DC DC Volt Rating
1,000 V
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

LITTELFUSE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The LITTELFUSE PSR Series is a very-fast-acting threaded flush-end square fuse rated at 200 A, 1,300 V AC, and 1,000 V DC (MPN PSR070FS0200Z). This semiconductor fuse operates as a very-fast-acting device for AC/DC voltage types.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the LITTELFUSE PSR070FS0200Z semiconductor fuse used for?

The LITTELFUSE PSR070FS0200Z is a very-fast-acting threaded flush-end square fuse designed to protect power semiconductors in AC/DC circuits up to 1,300 V AC and 1,000 V DC. It is commonly applied in industrial drives, inverters, and power supplies where rapid overcurrent interruption is critical.

What are the specifications of the LITTELFUSE PSR070FS0200Z?

The LITTELFUSE PSR070FS0200Z is a PSR Series very-fast-acting fuse rated at 200 A, 1,300 V AC, and 1,000 V DC. It features a threaded flush-end square body for secure mounting. The voltage type is AC/DC, and the manufacturer part number is PSR070FS0200Z.

Where to buy the LITTELFUSE PSR070FS0200Z worldwide?

3G Electric supplies the LITTELFUSE PSR070FS0200Z semiconductor fuse to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this very-fast-acting 200 A fuse.

How to select the correct LITTELFUSE PSR series fuse for an application?

To select the correct LITTELFUSE PSR series fuse, match the continuous current rating (200 A for the PSR070FS0200Z) to your circuit load, and ensure the voltage rating (1,300 V AC or 1,000 V DC) exceeds your system voltage. Verify the very-fast-acting characteristic suits your semiconductor protection needs.
