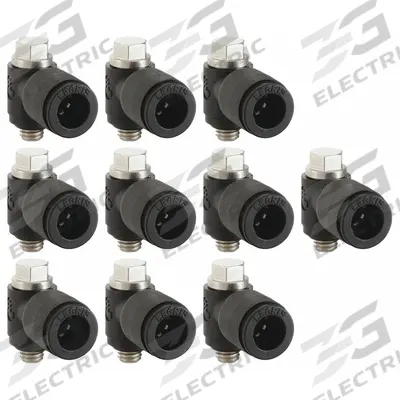

LEGRIS Push-Fit Adapter Fitting: 5/32 in OD Size, Push-to-Connect x MUNF, 25/32 in Overall Lg - Nylon & Nickel-Plated Brass Tube Fittings
LEGRISNylon & Nickel-Plated Brass Tube Fittings

LEGRIS Push-Fit Adapter Fitting: 5/32 in OD Size, Push-to-Connect x MUNF, 25/32 in Overall Lg

The LEGRIS Push-Fit Adapter Fitting (MPN 3118 04 20) is a nylon and nickel-plated brass tube fitting with a 5/32 in OD size, Push-to-Connect x MUNF type, and #10-32 thread size. It has a 25/32 in overall length and…

SKU 3G-OTH-491775

Brand
LEGRIS
Item
Push-Fit Adapter Fitting: 5/32 in OD Size, Push-to-Connect x MUNF, 25/32 in Overall Lg
Category
Nylon & Nickel-Plated Brass Tube Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

LEGRIS
Manufacturer Part Number
3118 04 20
Type
Push-to-Connect x MUNF, 10 PK
Overall Lg
25/32 in
Thread Size A
#10-32
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

LEGRIS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The LEGRIS Push-Fit Adapter Fitting (MPN 3118 04 20) is a nylon and nickel-plated brass tube fitting with a 5/32 in OD size, Push-to-Connect x MUNF type, and #10-32 thread size. It has a 25/32 in overall length and is sold in a 10-pack.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the LEGRIS Push-Fit Adapter Fitting used for?

This LEGRIS push-fit adapter connects 5/32 in OD nylon or polyurethane tubing to a #10-32 male UNF threaded port. It is commonly used in pneumatic systems, automation equipment, and fluid-handling applications where a reliable, leak-free seal is required.

What are the specifications of the LEGRIS 3118 04 20 fitting?

The LEGRIS 3118 04 20 is a push-to-connect x MUNF adapter with a 5/32 in OD tube size, #10-32 thread size, and 25/32 in overall length. It is made of nylon and nickel-plated brass, sold in a 10-pack. This fitting is designed for pneumatic and low-pressure fluid systems.

Where to buy LEGRIS push-fit fittings in worldwide?

3G Electric supplies LEGRIS push-fit fittings like the 3118 04 20 to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. As a global industrial sourcing partner, we provide genuine LEGRIS components for pneumatic and fluid-handling applications.

How to install a LEGRIS push-to-connect fitting?

To install, cut tubing square, push it fully into the fitting until it stops, then pull back gently to confirm the collet grips. For removal, press the collet evenly while pulling the tube out. Ensure the #10-32 male thread is sealed with PTFE tape or a suitable sealant before tightening.

Used in

Common applications for LEGRIS
Pneumatic actuator speed control — LEGRIS miniature flow control valve 7665 04 10 for meter-out regulation on 4 mm tubing
Compressed air isolation for maintenance — LEGRIS lockout valve 7886 11 11 for 1/8 in NPT systems
Fluid shutoff in water or oil lines — LEGRIS brass ball valve 0492 07 17 with 3/8 in FNPT connections
Push-to-connect air distribution — LEGRIS nylon ball valve 7915 56 11 for 1/4 in tubing with male NPT adapter
Safety lockout on BSPP pneumatic circuits — LEGRIS lockout valve 7880 10 17 for 3/8 in BSPP systems
Compact on/off control in tight spaces — LEGRIS nylon ball valve 7913 56 00 with push-to-connect ports for 1/4 in tubing
