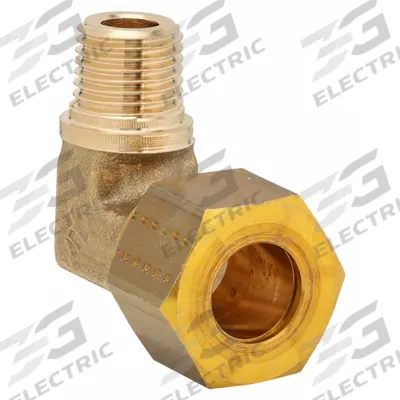

LEGRIS Compression Fitting Elbow: 10 mm OD x 1/2 in Pipe Fitting Size, Compression x MBSPT
The LEGRIS Compression Fitting Elbow is a standard sleeve brass compression fitting with a 10 mm OD x 1/2 in pipe fitting size, configured as Compression x MBSPT. Supplied in a 10-pack (MPN 0109 10 21), this fitting…
SKU 3G-OTH-481955
Need installation or engineering help?
Ask a question
Product Description
The LEGRIS Compression Fitting Elbow is a standard sleeve brass compression fitting with a 10 mm OD x 1/2 in pipe fitting size, configured as Compression x MBSPT. Supplied in a 10-pack (MPN 0109 10 21), this fitting is designed for connecting tubing to male BSPT threads in industrial fluid systems.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is a LEGRIS compression fitting elbow used for?
A LEGRIS compression fitting elbow connects tubing to male BSPT threads in industrial fluid systems. It is commonly used in pneumatic, hydraulic, and instrumentation applications where a 90-degree turn is needed. The brass construction provides corrosion resistance and reliable sealing under pressure.
What are the specifications of the LEGRIS 0109 10 21 compression fitting?
The LEGRIS 0109 10 21 is a standard sleeve brass compression fitting elbow. It has a 10 mm OD tube size and a 1/2 in pipe fitting size, with a Compression x MBSPT connection type. It is supplied in a 10-pack for industrial fluid systems.
Where to buy LEGRIS compression fittings in worldwide?
3G Electric supplies LEGRIS compression fittings worldwide. As a global industrial solutions provider, we handle full logistics and customs clearance to deliver genuine parts like the 0109 10 21 elbow to your facility. Contact us for pricing and lead time on this 10-pack fitting.
How to install a LEGRIS compression fitting elbow?
To install a LEGRIS compression fitting elbow, slide the nut and sleeve onto the tube, insert the tube fully into the fitting body, then tighten the nut by hand followed by a wrench. Avoid overtightening to prevent tube deformation. Always verify the tube is cut square and deburred before assembly.
Used in
Common applications for LEGRISLEGRIS Products
3G Electric supplies LEGRIS standard sleeve brass compression fittings. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
