KABELSCHLEPP Cable and Hose Carrier: Open, 3 Channels, 3.7 in Cavity Ht, 8 in Cavity Wd - Pull-Through Cable & Hose Carriers
KABELSCHLEPPPull-Through Cable & Hose Carriers

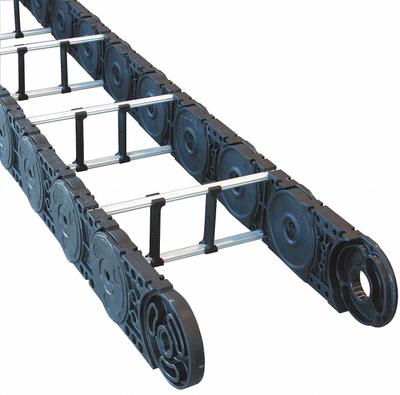

KABELSCHLEPP Cable and Hose Carrier: Open, 3 Channels, 3.7 in Cavity Ht, 8 in Cavity Wd

The KABELSCHLEPP Cable and Hose Carrier: Open (SKU 4NGH3, MPN MC1250-8.00-RS-220-2V1) is a pull-through cable and hose carrier from the M Series. It features an open carrier design with riveted aluminum crossbars and…

SKU 3G-OTH-49732

Brand
KABELSCHLEPP
Item
Cable and Hose Carrier: Open, 3 Channels, 3.7 in Cavity Ht, 8 in Cavity Wd
Category
Pull-Through Cable & Hose Carriers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

KABELSCHLEPP
Manufacturer Part Number
MC1250-8.00-RS-220-2V1
Series
M
Type
12 in
Length
12 in
Item
Cable and Hose Carrier
Color
Black
Channels
3
Cavity Ht
3.7 in
Cavity Wd
8 in
Item [MERCH]
Cable and Hose Carrier
Outside Width
9.7 in
Carrier Design
Open
Crossbar Style
Riveted
Outside Height
3.8 in
Accessory Width
9.7 in
Crossbar Material
Aluminum
Carrier Links Material
Plastic
Crossbar Opening Design
Non-Opening
Mounting Brackets Included
Without Mounting Brackets
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

KABELSCHLEPP Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The KABELSCHLEPP Cable and Hose Carrier: Open (SKU 4NGH3, MPN MC1250-8.00-RS-220-2V1) is a pull-through cable and hose carrier from the M Series. It features an open carrier design with riveted aluminum crossbars and plastic carrier links, measuring 12 inches in length, 9.7 inches in outside width, and 3.8 inches in outside height. This unit is supplied without mounting brackets and has a non-opening crossbar design.

Used in

Common applications for KABELSCHLEPP
CNC machine tools — KABELSCHLEPP S/SX series steel carriers for guiding power and signal cables along moving axes
Robotic work cells — KABELSCHLEPP M series pull-through carriers with aluminum crossbars for flexible cable management in articulated arms
Automated conveyor systems — KABELSCHLEPP S0950 MB4 mounting brackets securing carriers to fixed and moving ends
Material handling equipment — KABELSCHLEPP MC1250-8.00-RS-220-2V1 carriers for routing hydraulic hoses and electrical cables
Packaging machinery — KABELSCHLEPP S0650.1 MB4 brackets for compact carrier installations in limited spaces
