JOHNSON CONTROLS Single Pressure Control: Fan Cycling, Manual Reset, 475 psi, Open on Rise - Single-Pressure Encapsulated Control Switches
JOHNSON CONTROLSSingle-Pressure Encapsulated Control Switches

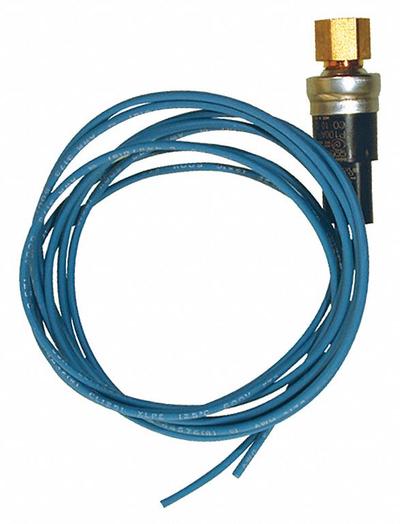

JOHNSON CONTROLS Single Pressure Control: Fan Cycling, Manual Reset, 475 psi, Open on Rise

The JOHNSON CONTROLS Single Pressure Control: Fan Cycling (SKU 40G325, MPN P100DA-2C) is a single-pressure encapsulated control switch with a SPST contact form, rated for 120V AC. It features an Open on Rise switch…

SKU 3G-OTH-68446

Brand
JOHNSON CONTROLS
Item
Single Pressure Control: Fan Cycling, Manual Reset, 475 psi, Open on Rise
Category
Single-Pressure Encapsulated Control Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

JOHNSON CONTROLS
Manufacturer Part Number
P100DA-2C
Type
Manual Reset, 475 psi, Open on Rise, SPST
Contact Form
SPST
Female Flare
1/4 in
Rated Voltage
120V AC
Switch Action
Open on Rise
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

JOHNSON CONTROLS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The JOHNSON CONTROLS Single Pressure Control: Fan Cycling (SKU 40G325, MPN P100DA-2C) is a single-pressure encapsulated control switch with a SPST contact form, rated for 120V AC. It features an Open on Rise switch action and manual reset, with a 475 psi pressure rating and a 1/4 in Female Flare connection.

Used in

Common applications for JOHNSON CONTROLS
Industrial refrigeration — Johnson Controls P170SA-1C dual pressure control for compressor protection in ammonia or halocarbon systems
Chiller plant automation — Johnson Controls VA7810-HGA-2 electric globe valve actuator for modulating chilled water flow in VG7000 series valves
Pneumatic HVAC retrofit — Johnson Controls T-4002-302 conversion kit for upgrading existing Robertshaw thermostats in commercial buildings
Cooling tower water management — Johnson Controls V-4332-1007 pneumatically actuated diaphragm valve for 3-way diverting of water flow
Boiler fuel oil pressure monitoring — Johnson Controls P545NCB-25C electronic lube oil pressure control with alarm for burner management systems
Process pressure sensing — Johnson Controls P599AAPS105C pressure transmitter with IP67 rating for washdown zones in food and beverage plants

JOHNSON CONTROLS Products

3G Electric supplies JOHNSON CONTROLS single-pressure encapsulated control switches. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
