INA Needle Roller Thrust Bearing: 2435, 1 1/2 in Bore Dia, 2 3/16 in Outside Dia - Needle Roller Thrust Bearings
INANeedle Roller Thrust Bearings

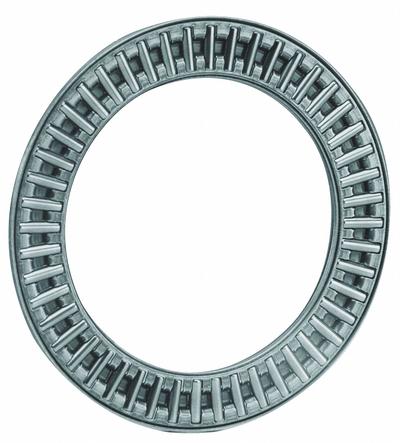

INA Needle Roller Thrust Bearing: 2435, 1 1/2 in Bore Dia, 2 3/16 in Outside Dia

The INA Needle Roller Thrust Bearing, model 2435 (MPN TC2435), is a needle roller thrust bearing with a 1 1/2 in bore diameter and a 2 3/16 in outside diameter. It belongs to the NTA/TC series and has a maximum speed…

SKU 3G-OTH-109523

Brand
INA
Item
Needle Roller Thrust Bearing: 2435, 1 1/2 in Bore Dia, 2 3/16 in Outside Dia
Category
Needle Roller Thrust Bearings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

INA
Manufacturer Part Number
TC2435
Type
NTA/TC, 5,000 RPM
Bore Dia
1 1/2 in
Outside Dia
2 3/16 in
Maximum Speed
5,000 RPM
Bearing Industry Number
2435
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

INA Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The INA Needle Roller Thrust Bearing, model 2435 (MPN TC2435), is a needle roller thrust bearing with a 1 1/2 in bore diameter and a 2 3/16 in outside diameter. It belongs to the NTA/TC series and has a maximum speed rating of 5,000 RPM.

Used in

Common applications for INA
Automotive transmissions — INA NKI25/20-TV-XL needle roller bearings for gearbox shafts
Material handling conveyors — INA RCJ75-XL flange-mount ball bearings for roller support
Agricultural machinery — INA SCE45 drawn-cup needle roller bearings for pivot points
Machine tool spindles — INA NKIB5904 combination bearings for combined radial/axial loads
Industrial pumps — INA 81110-TV cylindrical roller thrust bearings for axial thrust
General engineering — INA TC3244 needle roller thrust bearings for low-speed rotary tables

INA Products

3G Electric supplies INA needle roller thrust bearings. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
