IFM Pressure Transmitter: 250 psi, 4 to 20mA, 4-Pin M12 Connector, 1/4 in Male NPT - Miniature Pressure Transmitters with 4-Pin M12 Connector
IFMMiniature Pressure Transmitters with 4-Pin M12 Connector

IFM Pressure Transmitter: 250 psi, 4 to 20mA, 4-Pin M12 Connector, 1/4 in Male NPT

The IFM PT2415 is a miniature pressure transmitter with a 4-pin M12 connector, rated for 250 psi with a 4 to 20mA output. It features ±0.5% accuracy, an overpressure of 250 psi, and a burst pressure of 2,900 psi. The…

SKU 3G-OTH-176056

Brand
IFM
Item
Pressure Transmitter: 250 psi, 4 to 20mA, 4-Pin M12 Connector, 1/4 in Male NPT
Category
Miniature Pressure Transmitters with 4-Pin M12 Connector
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

IFM
Manufacturer Part Number
PT2415
Type
4 to 20mA, IP67/IP69K
Output
4 to 20mA
Accuracy
±0.5%
Male NPT
1/4 in
IP Rating
IP67
Overpressure
250 psi
M12 Connector
4-Pin
Burst Pressure
2,900 psi
Power Required
8.5 to 36V DC
Pressure Range
250 psi
Housing Material
Stainless Steel
Process Connection Type
NPT
Process Connection Gender
Male
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

IFM Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The IFM PT2415 is a miniature pressure transmitter with a 4-pin M12 connector, rated for 250 psi with a 4 to 20mA output. It features ±0.5% accuracy, an overpressure of 250 psi, and a burst pressure of 2,900 psi. The stainless steel housing has an IP67 rating, and the device requires 8.5 to 36V DC power with a 1/4 in male NPT process connection.

Used in

Common applications for IFM
Automotive assembly — IFM inductive proximity sensors (e.g., IFS243) for detecting metal parts on conveyor lines
Packaging machinery — IFM photoelectric sensors (e.g., OGE282) for object presence detection in high-speed wrapping systems
Hydraulic systems — IFM pressure transmitters (e.g., PX3227) for monitoring fluid pressure in industrial presses
Material handling — IFM RFID tags (e.g., E80347) for tracking pallets and containers in warehouse logistics
Machine safety — IFM light curtains (e.g., OY009S) for finger protection on automated assembly stations
Field wiring — IFM M12 connectors (e.g., E18163) for quick sensor replacement in food processing equipment

IFM Products

3G Electric supplies IFM miniature pressure transmitters with 4-pin m12 connector. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.

You might also need

Burners & Combustion →Pumps & Compressors →Spare Parts →All Products →

Similar products

Matched by specification & description
Pressure Transmitter: 0 psi to 150 psi, 4 to 20mA DC, 4-Pin M12 Connector, 1/4 in Male NPT, IP65 (MPN PX3244). Key specifications — Accuracy: ±0.75%; Burst Pressure: 2,175 psi; Calibration Certificate Included: No NIST-Traceable Calibration Certificate Included; IP Rating: IP65; Housing Material: Stainless Steel; Output: 4 to 20mA DC; Overpressure: 1,087 psi; Process Connection Type: NPT.
IFM
Pressure Transmitter: 0 psi to 150 psi, 4 to 20mA DC, 4-Pin M12 Connector, 1/4 in Male NPT, IP65 (MPN PX3244). Key specifications — Accuracy: ±0.75%; Burst Pressure: 2,175 psi; Calibration Certificate Included: No NIST-Traceable Calibration Certificate Included; IP Rating: IP65; Housing Material: Stainless Steel; Output: 4 to 20mA DC; Overpressure: 1,087 psi; Process Connection Type: NPT.
Pressure Transmitter: 0 psi to 15 psi, 4 to 20mA DC, 4-Pin M12 Connector, 1/4 in Male NPT, IP65 (MPN PX3227). Key specifications — Accuracy: ±0.75%; Burst Pressure: 450 psi; Calibration Certificate Included: No NIST-Traceable Calibration Certificate Included; IP Rating: IP65; Housing Material: Stainless Steel; Output: 4 to 20mA DC; Overpressure: 145 psi; Process Connection Type: NPT.
IFM
Pressure Transmitter: 0 psi to 15 psi, 4 to 20mA DC, 4-Pin M12 Connector, 1/4 in Male NPT, IP65 (MPN PX3227). Key specifications — Accuracy: ±0.75%; Burst Pressure: 450 psi; Calibration Certificate Included: No NIST-Traceable Calibration Certificate Included; IP Rating: IP65; Housing Material: Stainless Steel; Output: 4 to 20mA DC; Overpressure: 145 psi; Process Connection Type: NPT.

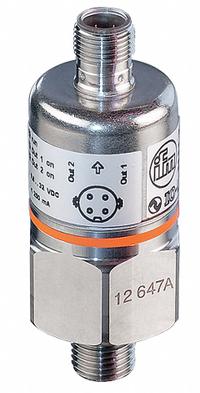

Pressure Transmitter: 0 psi to 200 psi, 4 to 20mA DC, 4-Pin M12 Connector, 1/4 in Male NPT, IP65 (MPN PX3234). Key specifications — Accuracy: ±0.75%; Burst Pressure: 2,175 psi; Calibration Certificate Included: No NIST-Traceable Calibration Certificate Included; IP Rating: IP65; Housing Material: Stainless Steel; Output: 4 to 20mA DC; Overpressure: 1,087 psi; Process Connection Type: NPT.
