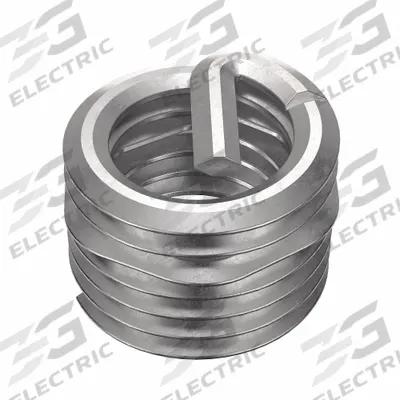

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 5/16"-24 Thread Size - Screw-Locking Tanged Helical Inserts
HELI-COILScrew-Locking Tanged Helical Inserts

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 5/16"-24 Thread Size

3G Electric supplies the HELI-COIL Helical Insert, a tanged tang-style screw-locking insert with a 5/16"-24 fine thread, 18-8 material grade, and dry film lubricant finish. This 500-piece pack delivers a tensile…

SKU 3G-OTH-528889

Brand
HELI-COIL
Item
Helical Insert: Tanged Tang Style, Screw-Locking, 5/16"-24 Thread Size
Category
Screw-Locking Tanged Helical Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HELI-COIL
Manufacturer Part Number
3591-5CNW312S
Type
Screw-Locking, 500 PK
Tensile Strength
200,000 to 250,000 psi
Finish Type
Dry Film Lubricant
Thread Size
5/16"-24
Thread Type
Fine
STI Tap Size
5/16"-24
Thread Direction
Right Hand
Compatible Material
Metal
Material Grade/Class
18-8
System of Measurement
Inch
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HELI-COIL Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

3G Electric supplies the HELI-COIL Helical Insert, a tanged tang-style screw-locking insert with a 5/16"-24 fine thread, 18-8 material grade, and dry film lubricant finish. This 500-piece pack delivers a tensile strength of 200,000 to 250,000 psi for metal applications. We interpret demand and source genuine industrial components across 14 departments—including fasteners, machining, and electrical—with specialist depth in combustion, pumps, and controls as an authorised distributor.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is a HELI-COIL helical insert used for?

A HELI-COIL helical insert repairs or reinforces threads in metal components. This screw-locking tanged tang style with 5/16"-24 fine thread provides a strong, vibration-resistant thread for applications in machining, automotive, and industrial equipment. 3G Electric supplies this genuine HELI-COIL insert for worldwide delivery.

What are the specifications of the HELI-COIL 3591-5CNW312S insert?

This HELI-COIL insert has a 5/16"-24 fine thread, 18-8 material grade, dry film lubricant finish, and tensile strength of 200,000 to 250,000 psi. It is a screw-locking tanged tang style, right-hand thread, compatible with metal, and comes in a 500-piece pack. 3G Electric sources this genuine HELI-COIL part for global supply.

Where to buy HELI-COIL helical inserts in worldwide?

3G Electric supplies HELI-COIL helical inserts worldwide. We interpret your demand, source genuine components like this 5/16"-24 screw-locking insert, and handle full logistics and customs for delivery to your location. Contact us to order the HELI-COIL 3591-5CNW312S or other industrial parts across 14 departments.

How to install a tanged tang-style helical insert?

Install a tanged tang-style helical insert by first tapping the hole with the correct STI tap (5/16"-24 for this HELI-COIL insert). Use a tang break-off tool after installation to remove the tang. Ensure the hole is clean and apply lubricant if needed. 3G Electric provides genuine HELI-COIL inserts for reliable thread repair.
