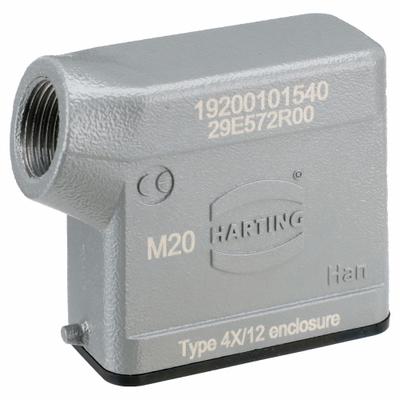

HARTING Rectangular Connector Hood: Size 10 A, Side, Single-Entry, M20 Cable Entry - Hoods for Rectangular Connectors
HARTINGHoods for Rectangular Connectors

HARTING Rectangular Connector Hood: Size 10 A, Side, Single-Entry, M20 Cable Entry

The HARTING M20 Rectangular Connector Hood, Size 10 A, is a single-entry hood for rectangular connectors with an M20 cable entry thread. It features an IP65 rating, a single-lever locking mechanism, an NBR seal, and…

SKU 3G-OTH-18463

Brand
HARTING
Item
Rectangular Connector Hood: Size 10 A, Side, Single-Entry, M20 Cable Entry
Category
Hoods for Rectangular Connectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HARTING
Manufacturer Part Number
19200101540
Type
Side, Single-Entry, M20 Cable Entry, IP65, Gray
IP Rating
IP65
Entry Type
Single-Entry
Locking Type
Single Lever
Seal Material
NBR
Primary Material
Aluminum
Size Designation
10 A
Cable Entry Thread Size
M20
Operating Temperature Range
-40 to 125 Degrees C
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HARTING Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HARTING M20 Rectangular Connector Hood, Size 10 A, is a single-entry hood for rectangular connectors with an M20 cable entry thread. It features an IP65 rating, a single-lever locking mechanism, an NBR seal, and an aluminum primary material. This hood operates within a temperature range of -40 to 125 Degrees C.

Used in

Common applications for HARTING
Factory automation — Han 16B rectangular connector kits (SKU 793WR6) for power and signal distribution in control cabinets
Robotics — M12 X-coded cordsets (SKU 793TU4) for Gigabit Ethernet communication between controllers and drives
Process control — Han 4A connectors (SKU 793WR4) for sensor/actuator connections in wet environments (IP65)
Data networks — RJ45 Cat6a shielded cordsets (SKU 793TM1) for high-speed data links in industrial Ethernet networks
Machine tools — M8 single-ended cordsets (SKU 793TY9) for proximity sensors and limit switches in flexing applications
Transportation — Bulkhead-mount Han 16B housings (SKU 793XX6) for through-panel connections in vehicle or rail equipment

HARTING Products

3G Electric supplies HARTING hoods for rectangular connectors. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
