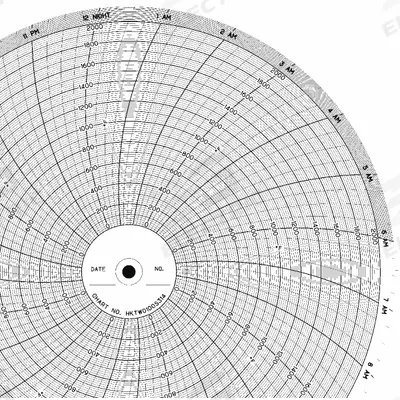

GRAPHIC CONTROLS Circular Paper Chart: Eurotherm Chessell, 0°F to 2,000°F, CLH HKTW0100S314 - Circular Charts Compatible with Eurotherm Chessell
GRAPHIC CONTROLSCircular Charts Compatible with Eurotherm Chessell

GRAPHIC CONTROLS Circular Paper Chart: Eurotherm Chessell, 0°F to 2,000°F, CLH HKTW0100S314

The GRAPHIC CONTROLS Circular Paper Chart is a temperature-measuring circular chart compatible with Eurotherm Chessell Model 392 recorders. It measures temperature in degrees Fahrenheit, with a range of 0°F to…

SKU 3G-OTH-172390

Brand
GRAPHIC CONTROLS
Item
Circular Paper Chart: Eurotherm Chessell, 0°F to 2,000°F, CLH HKTW0100S314
Category
Circular Charts Compatible with Eurotherm Chessell
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

GRAPHIC CONTROLS
Manufacturer Part Number
CLH HKTW0100S314
Type
0°F to 2,000°F, CLH HKTW0100S314, 100 PK
Units Measured
Temperature °F
Compatible with Manufacturer Model Number
392
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

GRAPHIC CONTROLS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The GRAPHIC CONTROLS Circular Paper Chart is a temperature-measuring circular chart compatible with Eurotherm Chessell Model 392 recorders. It measures temperature in degrees Fahrenheit, with a range of 0°F to 2,000°F, and is supplied in packs of 100. The manufacturer part number is CLH HKTW0100S314.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Used in

Common applications for GRAPHIC CONTROLS
Temperature monitoring in cold storage facilities — Graphic Controls circular chart for Dickson, range -20°F to 120°F (Chart 669)
Process temperature recording in industrial ovens — Graphic Controls circular chart for Honeywell, range 0°F to 400°F (BN 24001661-006)
Environmental chamber data logging — Graphic Controls circular chart for Dickson, range 45°F to 90°F (Chart 070)
Continuous strip chart recording in Yokogawa HR 2300 data loggers — Graphic Controls fanfold paper, 13 7/16 in width (YOK B962MEY)
High-temperature industrial process monitoring — Graphic Controls circular chart for Honeywell, range -250°F to 150°F (BN 24001661-042)
Pressure or flow recording with generic scales — Graphic Controls circular chart for Honeywell, range 0 to 1,000 units (BN 24001661-010)
