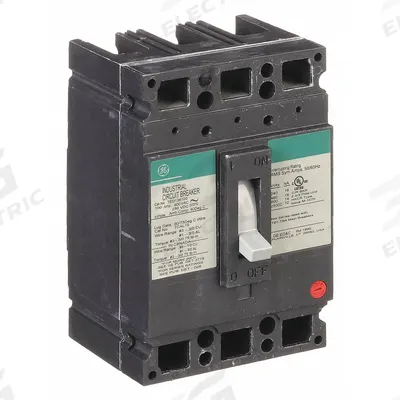

GE Molded Case Circuit Breaker: 100 A Amps, 18kA at 120/240/277/480V AC, Fixed - TED-, TEHD-Frame GE Molded Case Circuit Breakers
GETED-, TEHD-Frame GE Molded Case Circuit Breakers

GE Molded Case Circuit Breaker: 100 A Amps, 18kA at 120/240/277/480V AC, Fixed

The GE Molded Case Circuit Breaker (SKU 6AXJ1) is a TED-series, 100 A device from the TED-/TEHD-frame family. It features a fixed instantaneous trip, a maximum AIR rating of 18kA at 120/240/277/480V AC, and ABC phase…

SKU 3G-OTH-21314

Brand
GE
Item
Molded Case Circuit Breaker: 100 A Amps, 18kA at 120/240/277/480V AC, Fixed
Category
TED-, TEHD-Frame GE Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

GE
Manufacturer Part Number
TED136100WL
Series
TED
Type
18kA at 120/240/277/480V AC, Fixed, Line/Load Lug, ABC
Max. AIR Rating
18kA at 120/240/277/480V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Line/Load Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

GE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The GE Molded Case Circuit Breaker (SKU 6AXJ1) is a TED-series, 100 A device from the TED-/TEHD-frame family. It features a fixed instantaneous trip, a maximum AIR rating of 18kA at 120/240/277/480V AC, and ABC phase connection with line/load lug terminals (MPN TED136100WL).

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the GE TED136100WL molded case circuit breaker used for?

The GE TED136100WL is a 100 A molded case circuit breaker used for overcurrent protection in commercial and industrial electrical distribution panels. It is suitable for branch-circuit protection in lighting, motor, and general power applications where a fixed instantaneous trip and ABC phase connection are required.

What are the specifications of the GE TED136100WL circuit breaker?

The GE TED136100WL is a TED-series molded case circuit breaker rated 100 A with a maximum AIR rating of 18kA at 120/240/277/480V AC. It features a fixed instantaneous trip, ABC phase connection, and line/load lug terminals. The manufacturer part number is TED136100WL.

Where to buy the GE TED136100WL circuit breaker worldwide?

You can source the GE TED136100WL circuit breaker through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply genuine GE molded case circuit breakers to procurement teams globally.

How to select the correct GE molded case circuit breaker for your application?

To select the correct GE molded case circuit breaker, verify the continuous current rating (e.g., 100 A), the available fault current (AIR rating must exceed system fault level), voltage rating (120/240/277/480V AC), and trip characteristics (fixed instantaneous). Ensure the phase connection (ABC) and terminal type (line/load lug) match your panel requirements.
