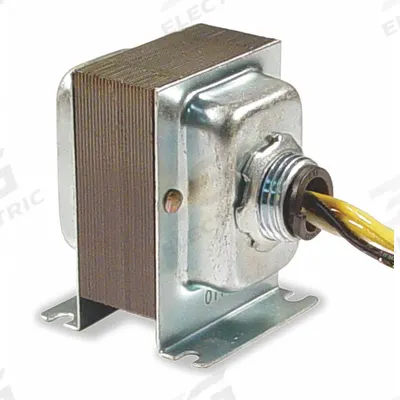

FUNCTIONAL DEVICES INC / RIB Class 2 Transformer: 20 VA Power Rating, 120V AC - Open Class 2 Transformers
FUNCTIONAL DEVICES INC / RIBOpen Class 2 Transformers

FUNCTIONAL DEVICES INC / RIB Class 2 Transformer: 20 VA Power Rating, 120V AC

The FUNCTIONAL DEVICES INC / RIB TR20VA001 is an open Class 2 transformer with a 20 VA power rating. It features a 120V AC input and a 24V AC output, with wire lead connections for both primary and secondary sides…

SKU 3G-OTH-46793

Brand
FUNCTIONAL DEVICES INC / RIB
Item
Class 2 Transformer: 20 VA Power Rating, 120V AC
Category
Open Class 2 Transformers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

FUNCTIONAL DEVICES INC / RIB
Manufacturer Part Number
TR20VA001
Type
Foot/Hub
AC
120V
Mounting
Hub
Input Voltage
120V AC
Output Voltage
24V AC
Connection - Primary
Wire Lead
Connection - Secondary
Wire Lead
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

FUNCTIONAL DEVICES INC / RIB Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The FUNCTIONAL DEVICES INC / RIB TR20VA001 is an open Class 2 transformer with a 20 VA power rating. It features a 120V AC input and a 24V AC output, with wire lead connections for both primary and secondary sides. This hub-mounted unit is designed for industrial control applications requiring a step-down voltage conversion.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Used in

Common applications for FUNCTIONAL DEVICES INC / RIB
HVAC control systems — Functional Devices Inc. / RIB PSH series transformers provide 24V AC power for thermostats and damper actuators.
Burner management — Functional Devices Inc. / RIB TR50VA022US transformer supplies low-voltage power for flame safeguard controllers.
Pump control panels — Functional Devices Inc. / RIB PSH500A-LVC power supply delivers 24V AC for relay logic in pump sequencing.
Lighting control — Functional Devices Inc. / RIB SIB04S rocker switch enables manual override of relay-controlled lighting circuits.
Industrial automation — Functional Devices Inc. / RIB PSH300A transformer powers 24V AC sensors and PLC input modules.
Gas valve actuation — Functional Devices Inc. / RIB enclosed transformers provide isolated 24V AC for solenoid valves in gas trains.

FUNCTIONAL DEVICES INC / RIB Products

3G Electric supplies FUNCTIONAL DEVICES INC / RIB open class 2 transformers. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
