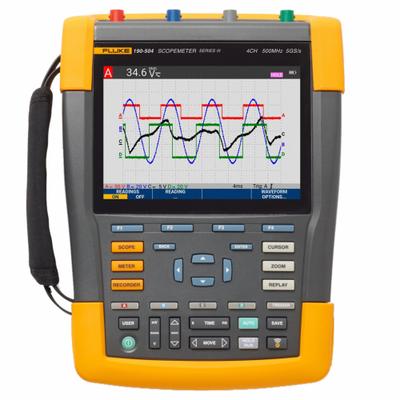

FLUKE Handheld Oscilloscope: Portable Handheld Digital Oscilloscopes, Fully Isolated
FLUKEPortable Handheld Digital Oscilloscopes

FLUKE Handheld Oscilloscope: Portable Handheld Digital Oscilloscopes, Fully Isolated

The FLUKE-190-504-III is a portable handheld digital oscilloscope from FLUKE, featuring a battery power source, IP51 rating, and a CAT IV 600V safety rating. It offers a sampling rate of 125 MS/s, memory depth of…

SKU 3G-OTH-170078

Brand
FLUKE
Item
Handheld Oscilloscope: Portable Handheld Digital Oscilloscopes, Fully Isolated
Category
Portable Handheld Digital Oscilloscopes
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

FLUKE
Manufacturer Part Number
FLUKE-190-504-III
Type
Fully Isolated, Auto, True RMS
Includes
AC Power Adapter
IP Rating
IP51
Interface
USB
Body Style
Handheld
Key Features
Real Time Clock
Memory Depth
30,000 Data Points Per Channel
Power Source
Battery
Product Type
Portable Handheld Digital Oscilloscopes
Sampling Rate
125 MS/s
Triggering Mode
Auto
CAT Safety Rating
CAT IV 600V
AC Magnitude Calculation
True RMS
Channel Source Isolation
Fully Isolated
Basic AC Voltage Accuracy
+/-(1.50% +10 Counts)
Basic DC Voltage Accuracy
±(1.50% +6 Counts)
Digital Display Screen Type
LCD
Calibration Certificate Type
Not Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

FLUKE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The FLUKE-190-504-III is a portable handheld digital oscilloscope from FLUKE, featuring a battery power source, IP51 rating, and a CAT IV 600V safety rating. It offers a sampling rate of 125 MS/s, memory depth of 30,000 data points per channel, and True RMS AC magnitude calculation. The device includes a USB interface, LCD display, and operates in Auto triggering mode with fully isolated channels.
