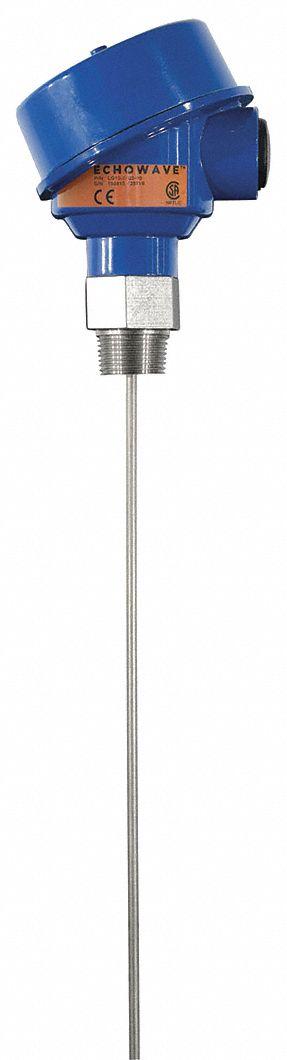

FLOWLINE Rod Guided Wave Radar: Liquid Level Sensor Transmitter, Vertical, 3/4 in NPT - Guided Wave Radar Sensors
FLOWLINEGuided Wave Radar Sensors

FLOWLINE Rod Guided Wave Radar: Liquid Level Sensor Transmitter, Vertical, 3/4 in NPT

The FLOWLINE Rod Guided Wave Radar is a liquid level sensor transmitter with a rod probe, offering +/-3 mm accuracy. It features an aluminum body, 316 stainless steel stem and probe, and operates on 18/30V DC with a…

SKU 3G-OTH-90646

Brand
FLOWLINE
Item
Rod Guided Wave Radar: Liquid Level Sensor Transmitter, Vertical, 3/4 in NPT
Category
Guided Wave Radar Sensors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

FLOWLINE
Manufacturer Part Number
LG10-0003-01
Type
Vertical, NPT, +/-3 mm
NPT
3/4 in
Accuracy
+/-3 mm
Probe Type
Rod
Body Material
Aluminum
Stem Material
316 Stainless Steel
Probe Material
316 Stainless Steel
Nameplate Voltage
18/30V DC
Mounting Orientation
Vertical
Output Voltage Range
4 to 20mA
Output Wire Configuration
3-Wire
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

FLOWLINE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The FLOWLINE Rod Guided Wave Radar is a liquid level sensor transmitter with a rod probe, offering +/-3 mm accuracy. It features an aluminum body, 316 stainless steel stem and probe, and operates on 18/30V DC with a 4 to 20mA output in a 3-wire configuration. This vertical-mounting unit is designed for continuous level measurement in industrial applications.

Used in

Common applications for FLOWLINE
Chemical processing — FLOWLINE ultrasonic level switch (LU10-1405) for corrosive liquid level detection in storage tanks.
Water and wastewater treatment — FLOWLINE guided wave radar sensor (LG10-1003-01) for level measurement in clarifiers and lift stations.
Oil and gas — FLOWLINE rod guided wave radar (LG10-0003-01) for level monitoring in separator vessels and sump tanks.
Food and beverage — FLOWLINE level controller (LC52-1001) for pump control in CIP (clean-in-place) systems.
Pharmaceutical manufacturing — FLOWLINE coaxial guided wave radar (LG10-1003-01) for precise level measurement in stainless steel reactors.
Industrial tank farms — FLOWLINE reducer bushing (LM52-1400) for adapting ultrasonic sensors to existing tank openings.
