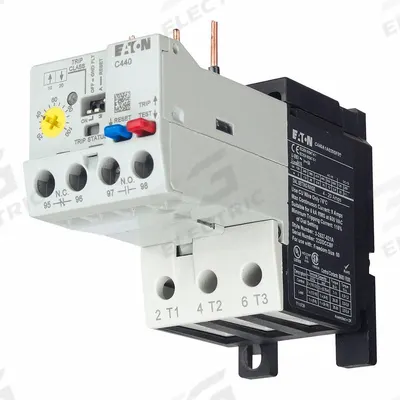

EATON Overload Relay: Electronic Protection, 3 Poles, NEMA Size 00 - NEMA Electronic Overload Relays
EATONNEMA Electronic Overload Relays

EATON Overload Relay: Electronic Protection, 3 Poles, NEMA Size 00

The EATON Overload Relay (MPN C440A1A020SF00) is a NEMA Size 00 electronic overload relay with three poles, rated for 4 A to 20 A and a maximum voltage of 690V AC. It features screw clamp terminals and is compatible…

SKU 3G-OTH-41315

Brand
EATON
Item
Overload Relay: Electronic Protection, 3 Poles, NEMA Size 00
Category
NEMA Electronic Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
C440A1A020SF00
Phase
Three
Maximum Voltage Rating
690V AC
Thermal Units Required
Not Applicable to Electronic Type Overload Relays
Terminal Connection Type
Screw Clamp Terminals
Compatible Contactor Series
C25 Definite Purpose
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Overload Relay (MPN C440A1A020SF00) is a NEMA Size 00 electronic overload relay with three poles, rated for 4 A to 20 A and a maximum voltage of 690V AC. It features screw clamp terminals and is compatible with the C25 Definite Purpose contactor series. This three-phase device does not require thermal units, as it is an electronic type.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the EATON C440A1A020SF00 overload relay used for?

The EATON C440A1A020SF00 is an electronic overload relay used to protect three-phase motors from overcurrent and phase loss. It is commonly applied in industrial motor control centers and panel builds where NEMA Size 00 contactors are used, such as with the C25 Definite Purpose contactor series.

What are the specifications of the EATON C440A1A020SF00 overload relay?

The EATON C440A1A020SF00 is a three-pole electronic overload relay rated for 4 A to 20 A with a maximum voltage of 690V AC. It has screw clamp terminals, is NEMA Size 00, and is compatible with the C25 Definite Purpose contactor series. No thermal units are required as it is an electronic type.

Where to buy the EATON C440A1A020SF00 overload relay worldwide?

You can source the EATON C440A1A020SF00 overload relay from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this EATON electronic overload relay.

How to select the correct EATON overload relay for a C25 contactor?

To select the correct EATON overload relay for a C25 Definite Purpose contactor, match the relay's current range (e.g., 4 A to 20 A for the C440A1A020SF00) to the motor full-load amps. Ensure the relay is electronic type (no thermal units needed) and rated for the system voltage, up to 690V AC. Verify NEMA size compatibility.
