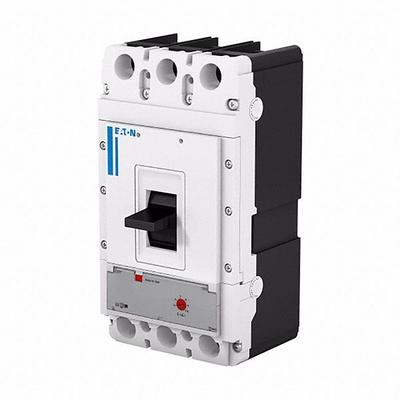

EATON Circuit Breaker: 80 A Amps, 35 kA at 480V AC, Fixed, AB, Std Terminals Load Only - Power Defense Molded Case Circuit Breakers
EATONPower Defense Molded Case Circuit Breakers

EATON Circuit Breaker: 80 A Amps, 35 kA at 480V AC, Fixed, AB, Std Terminals Load Only

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT93, MPN PDG22G0080TFFL) is an 80 A, 2-pole unit with a 225A/Frame 2 frame size. It features a maximum AIR rating of 35 kA at 480V AC, fixed instantaneous…

SKU 3G-OTH-23711

Brand
EATON
Item
Circuit Breaker: 80 A Amps, 35 kA at 480V AC, Fixed, AB, Std Terminals Load Only
Category
Power Defense Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
PDG22G0080TFFL
Type
35 kA at 480V AC, Fixed, AB, Std Terminals Load Only, Std
Poles
2
Frame Size
225A/Frame 2
Max. AIR Rating
35 kA at 480V AC
Phase Connection
AB
Instantaneous Trip
Fixed
Terminal Connection
Standard Terminals Load Only
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT93, MPN PDG22G0080TFFL) is an 80 A, 2-pole unit with a 225A/Frame 2 frame size. It features a maximum AIR rating of 35 kA at 480V AC, fixed instantaneous trip, AB phase connection, and standard terminals load only.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas

EATON Products

3G Electric supplies EATON power defense molded case circuit breakers. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
