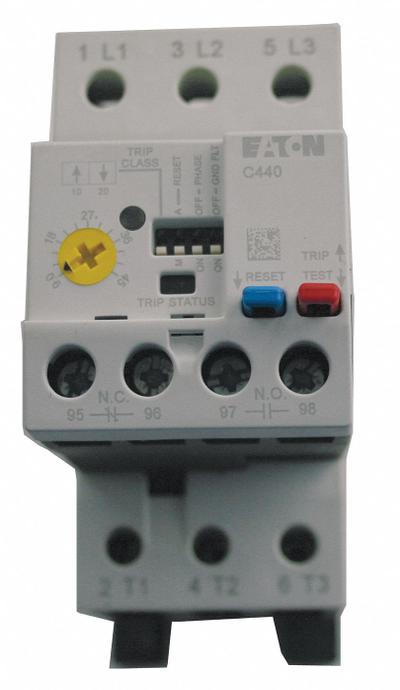

EATON Overload Relay: Electronic Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity - IEC Electronic Overload Relays
EATONIEC Electronic Overload Relays

EATON Overload Relay: Electronic Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity

The EATON Overload Relay: Electronic Protection (MPN XTOE1P6CGSS) is an IEC electronic overload relay with a Frame Size C, designed for use with EATON XT Mini Contactors of the same frame size. It features a 1NO/1NC…

SKU 3G-OTH-44393

Brand
EATON
Item
Overload Relay: Electronic Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity
Category
IEC Electronic Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
XTOE1P6CGSS
Type
1NO/1NC, Phase Loss Sensitivity, Frame Size C
Poles
3
Frame Size
C
Compatible Contactors
Frame Size C
Auxiliary Contact Form
1NO/1NC
Phase Loss Sensitivity
Yes
Thermal Units Required
Not Applicable to Electronic Type Overload Relays
Compatible Contactor Series
XT Mini Contactors
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Overload Relay: Electronic Protection (MPN XTOE1P6CGSS) is an IEC electronic overload relay with a Frame Size C, designed for use with EATON XT Mini Contactors of the same frame size. It features a 1NO/1NC auxiliary contact form and includes phase loss sensitivity. As an electronic type, it does not require thermal units.
