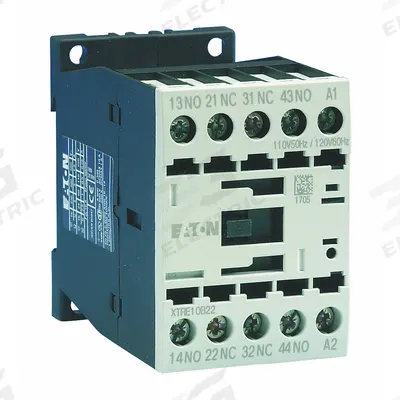

EATON Control Relay: DIN-Rail Relay Mounting, 240V AC Coil Volt, 2NO/2NC - DIN Rail-Mounted Relays
EATONDIN Rail-Mounted Relays

EATON Control Relay: DIN-Rail Relay Mounting, 240V AC Coil Volt, 2NO/2NC

SKU 3G-OTH-37296

Brand
EATON
Item
Control Relay: DIN-Rail Relay Mounting, 240V AC Coil Volt, 2NO/2NC
Category
DIN Rail-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
XTRE10B22B
Type
2NO/2NC, 10 A
AC Coil Volt
240V
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Frequently Asked Questions

What is the EATON XTRE10B22B IEC control relay used for?

The EATON XTRE10B22B is a DIN-rail-mounted control relay used in industrial automation and motor control panels. It switches loads up to 10 A with a 240V AC coil, providing 2 normally open and 2 normally closed contacts for logic and interlocking circuits.

What are the specifications of the EATON XTRE10B22B relay?

The EATON XTRE10B22B is an IEC control relay with a 240V AC coil voltage, 2NO/2NC contact configuration, and a 10 A rating. It mounts on a DIN rail and is part of EATON's XTRE series for industrial control applications.

Where to buy the EATON XTRE10B22B relay worldwide?

3G Electric supplies the EATON XTRE10B22B relay to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for a quote and lead time on this EATON control relay.

How to install the EATON XTRE10B22B relay on a DIN rail?

Snap the EATON XTRE10B22B relay onto a standard 35 mm DIN rail until it locks. Wire the 240V AC coil to terminals A1 and A2, and connect your load to the 2NO/2NC contact terminals. Ensure the coil voltage matches your control circuit before energizing.
