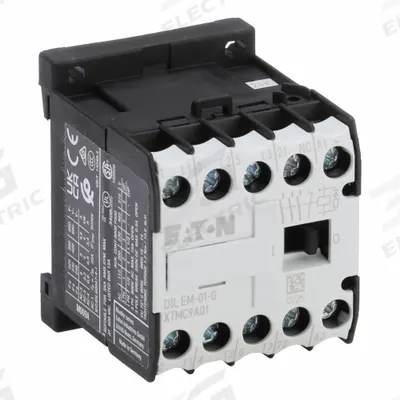

EATON Miniature IEC Magnetic Contactor: Non-Reversing, 3 Poles, 3NO Contacts - Miniature, Non-Reversing IEC Contactors
EATONMiniature, Non-Reversing IEC Contactors

EATON Miniature IEC Magnetic Contactor: Non-Reversing, 3 Poles, 3NO Contacts

The EATON Miniature IEC Magnetic Contactor: Non-Reversing (SKU 4WXA5, MPN XTMC9A01TD) is a 3-pole, 3NO contact device rated at 9 A with a 24V DC coil. This miniature, non-reversing contactor from EATON is designed…

SKU 3G-OTH-128092

Brand
EATON
Item
Miniature IEC Magnetic Contactor: Non-Reversing, 3 Poles, 3NO Contacts
Category
Miniature, Non-Reversing IEC Contactors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
XTMC9A01TD
Type
9 A
Poles
3
DC Coil
24V
Contacts
3NO
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Miniature IEC Magnetic Contactor: Non-Reversing (SKU 4WXA5, MPN XTMC9A01TD) is a 3-pole, 3NO contact device rated at 9 A with a 24V DC coil. This miniature, non-reversing contactor from EATON is designed for industrial switching applications.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the EATON XTMC9A01TD miniature contactor used for?

The EATON XTMC9A01TD is a miniature IEC magnetic contactor used for switching electrical loads in industrial control panels, motor starters, and automation systems. Its 3-pole, 3NO configuration and 9 A rating make it suitable for non-reversing applications such as conveyors, pumps, and fans.

What are the specifications of the EATON XTMC9A01TD contactor?

The EATON XTMC9A01TD is a non-reversing, 3-pole contactor with 3 normally open (NO) contacts, rated at 9 A. It features a 24 VDC coil and is part of EATON's miniature IEC series. The manufacturer part number is XTMC9A01TD, and the SKU is 4WXA5.

Where to buy the EATON XTMC9A01TD contactor worldwide?

You can source the EATON XTMC9A01TD contactor through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this EATON miniature contactor.

How to select the right EATON miniature contactor for an application?

To select the correct EATON miniature contactor, match the coil voltage (e.g., 24 VDC for the XTMC9A01TD) to your control circuit, ensure the contact rating (9 A) exceeds your load current, and verify pole count (3 poles) and contact configuration (3NO) meet your switching needs. Consult EATON's technical documentation for motor full-load current and duty cycle.
