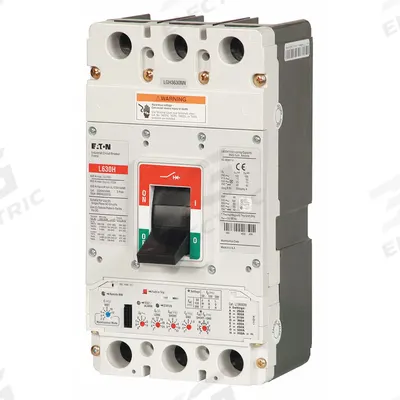

EATON Molded Case Circuit Breaker: 500 A Amps, 100kA at 480V AC, Fixed, ABC, Line/Load Lug
The EATON LG-Frame Molded Case Circuit Breaker (MPN LGH3500FAG) is a 500 A rated device with a 100kA interrupting capacity at 480V AC. It features a fixed configuration, ABC phase protection, and Line/Load Lug…
SKU 3G-OTH-128358
Need installation or engineering help?
Ask a question
Product Description
The EATON LG-Frame Molded Case Circuit Breaker (MPN LGH3500FAG) is a 500 A rated device with a 100kA interrupting capacity at 480V AC. It features a fixed configuration, ABC phase protection, and Line/Load Lug terminals, with a 400A/LG trip unit. This industrial circuit breaker is designed for reliable overcurrent protection in electrical distribution systems.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the EATON LGH3500FAG molded case circuit breaker used for?
The EATON LGH3500FAG is a 500 A molded case circuit breaker used for overcurrent protection in industrial electrical distribution systems. It is suitable for fixed installations requiring 100kA interrupting capacity at 480V AC, with ABC phase protection and Line/Load Lug terminals.
What are the specifications of the EATON LGH3500FAG circuit breaker?
The EATON LGH3500FAG is a 500 A rated LG-frame molded case circuit breaker with a 100kA interrupting capacity at 480V AC. It features a fixed configuration, ABC phase protection, Line/Load Lug terminals, and a 400A/LG trip unit. The MPN is LGH3500FAG.
Where to buy the EATON LGH3500FAG circuit breaker worldwide?
3G Electric supplies the EATON LGH3500FAG molded case circuit breaker worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time.
How to select the right EATON molded case circuit breaker for your application?
Select an EATON molded case circuit breaker by matching the continuous current rating (e.g., 500 A), interrupting capacity (e.g., 100kA at 480V AC), frame type (e.g., LG), and trip unit (e.g., 400A/LG) to your system's voltage and fault current requirements. Consult a qualified engineer for proper coordination.
