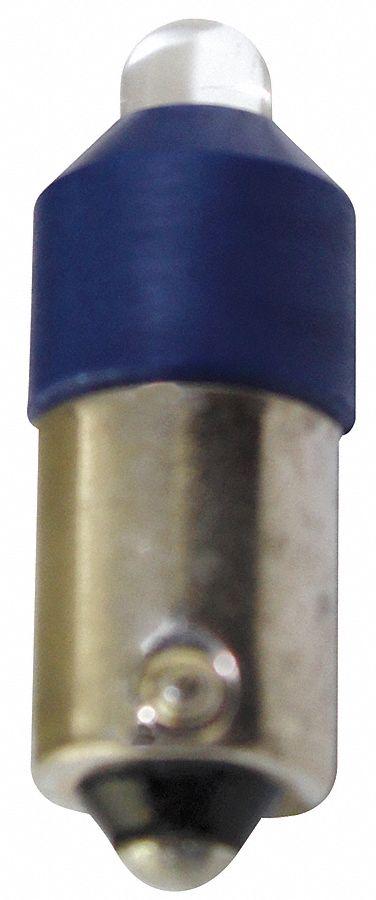

EATON Compact LED Bulb: LED, Miniature Bayonet (BA9s), (T) Tubular, T3-1/4, 24V AC/DC - BA9s Single-Contact Miniature Bayonet Base Lamps
EATONBA9s Single-Contact Miniature Bayonet Base Lamps

EATON Compact LED Bulb: LED, Miniature Bayonet (BA9s), (T) Tubular, T3-1/4, 24V AC/DC

The EATON Compact LED Bulb (MPN E22LED024BN) is a BA9s single-contact miniature bayonet base lamp with a T3-1/4 tubular bulb shape. It operates on 24V AC/DC and emits blue light at 0.4 W. This LED lamp is designed…

SKU 3G-OTH-385154

Brand
EATON
Item
Compact LED Bulb: LED, Miniature Bayonet
Category
BA9s Single-Contact Miniature Bayonet Base Lamps
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
E22LED024BN
Type
Miniature Bayonet (BA9s), (T) Tubular, T3-1/4
Watt
0.4 W
AC/DC
24V
Voltage
24V AC/DC
Bulb Shape
T3-1/4
Light Color
Blue
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Compact LED Bulb (MPN E22LED024BN) is a BA9s single-contact miniature bayonet base lamp with a T3-1/4 tubular bulb shape. It operates on 24V AC/DC and emits blue light at 0.4 W. This LED lamp is designed for industrial indicator and signaling applications requiring a compact, low-power light source.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas

EATON Products

3G Electric supplies EATON ba9s single-contact miniature bayonet base lamps. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
