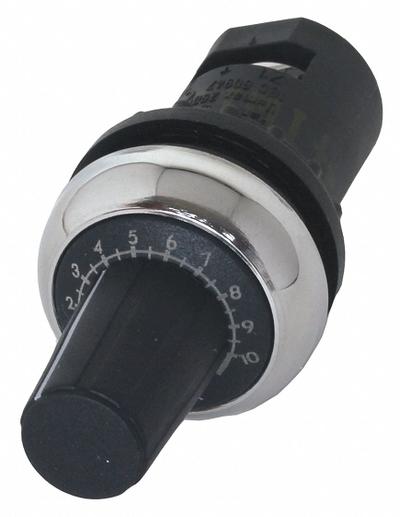

EATON Potentiometer: 22 mm Panel Mounting Size, 1,000 ohm Max Resist Rating - Potentiometers with Dial Plates & Operators
EATONPotentiometers with Dial Plates & Operators

EATON Potentiometer: 22 mm Panel Mounting Size, 1,000 ohm Max Resist Rating

The EATON M22-R1K-RH is a 22 mm panel-mounting potentiometer from the M22 series, featuring a 1,000 ohm maximum resistance rating. It includes a dial plate and an oversized knob with a non-metallic silver bezel. This…

SKU 3G-OTH-34179

Brand
EATON
Item
Potentiometer: 22 mm Panel Mounting Size, 1,000 ohm Max Resist Rating
Category
Potentiometers with Dial Plates & Operators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
M22-R1K-RH
Series
M22
Type
Series M22
Knob Style
Oversized
Bezel Style
Non-Metallic (Silver)
Max Resist Rating
1,000 ohm
Includes Dial Plate
Dial Plate Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON M22-R1K-RH is a 22 mm panel-mounting potentiometer from the M22 series, featuring a 1,000 ohm maximum resistance rating. It includes a dial plate and an oversized knob with a non-metallic silver bezel. This potentiometer is designed for industrial control applications requiring precise resistance adjustment.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas

EATON Products

3G Electric supplies EATON potentiometers with dial plates & operators. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
