EATON Selector Switch: 22 mm Panel Mounting Size, 2 Positions, Short Lever, 1NO - Selector Switches
EATONSelector Switches

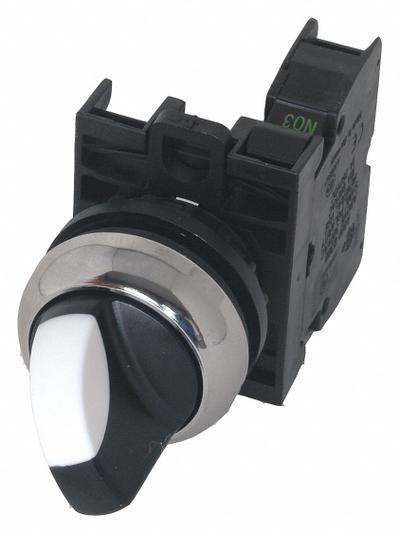

EATON Selector Switch: 22 mm Panel Mounting Size, 2 Positions, Short Lever, 1NO

The EATON M22 Series Selector Switch (SKU 30XE54) is a 22 mm panel-mounting, non-illuminated selector switch with a metal operator head and short-handled knob. It features a maintained/maintained action with two On…

SKU 3G-OTH-34381

Brand
EATON
Item
Selector Switch: 22 mm Panel Mounting Size, 2 Positions, Short Lever, 1NO
Category
Selector Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
M22M-WKV-K10
Series
M22
Type
Short Lever, 1NO, Metallic
Cam
No Cam Required
Action
Maintained/Maintained
Positions
2
AC Contact Rating
6 A @ 230 V
DC Contact Rating
3 A @ 24 V
Operator Head Type
Short-Handled Knob
Operator Illumination
Non-Illuminated
Operator Head Material
Metal
Switch Bezel Material Type
Metallic
Switch Function @ 1st Position
On
Switch Function @ 2nd Position
On
Switch Function @ 3rd Position
No Third Position
Switch Function @ 4th Position
No Fourth Position
Hazardous Location Specification
Not Rated
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON M22 Series Selector Switch (SKU 30XE54) is a 22 mm panel-mounting, non-illuminated selector switch with a metal operator head and short-handled knob. It features a maintained/maintained action with two On positions (no third or fourth position), and is rated for AC contact at 6 A @ 230 V and DC contact at 3 A @ 24 V. This switch requires no cam and is not rated for hazardous locations.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas

EATON Products

3G Electric supplies EATON selector switches. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
