EATON Selector Switch: 30 mm Panel Mounting Size, 2 Positions, Short Lever, 1NO - Selector Switches
EATONSelector Switches

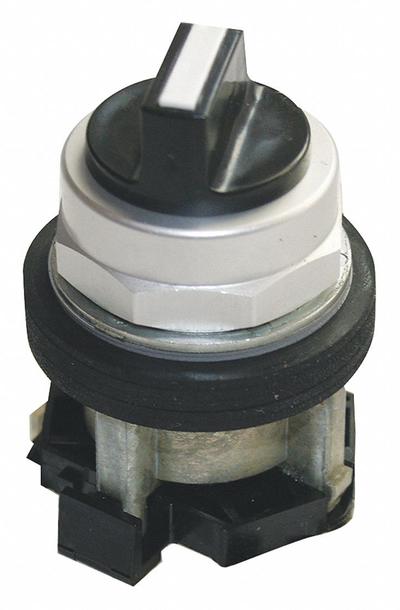

EATON Selector Switch: 30 mm Panel Mounting Size, 2 Positions, Short Lever, 1NO

The EATON HT800 Series Selector Switch (MPN HT8JNH3AA5) is a 30 mm panel-mounting, non-illuminated selector switch with a short-handled knob and polymer operator head. It features a maintained/momentary action with a…

SKU 3G-OTH-34441

Brand
EATON
Item
Selector Switch: 30 mm Panel Mounting Size, 2 Positions, Short Lever, 1NO
Category
Selector Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
HT8JNH3AA5
Series
HT800
Type
Short Lever, 1NO, Metallic
Cam
3A
Action
Maintained/Momentary
Positions
2
AC Contact Rating
10 A @ 600 V
DC Contact Rating
5 A @ 250 V
Operator Head Type
Short-Handled Knob
Operator Illumination
Non-Illuminated
Operator Head Material
Polymer
Switch Bezel Material Type
Metallic
Switch Function @ 1st Position
Off
Switch Function @ 2nd Position
On
Switch Function @ 3rd Position
No Third Position
Switch Function @ 4th Position
No Fourth Position
Hazardous Location Specification
Not Rated
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON HT800 Series Selector Switch (MPN HT8JNH3AA5) is a 30 mm panel-mounting, non-illuminated selector switch with a short-handled knob and polymer operator head. It features a maintained/momentary action with a 3A cam, offering two positions (Off/On) and no third or fourth position. The switch has an AC contact rating of 10 A @ 600 V and a DC contact rating of 5 A @ 250 V, with a metallic bezel material type and no hazardous location rating.
