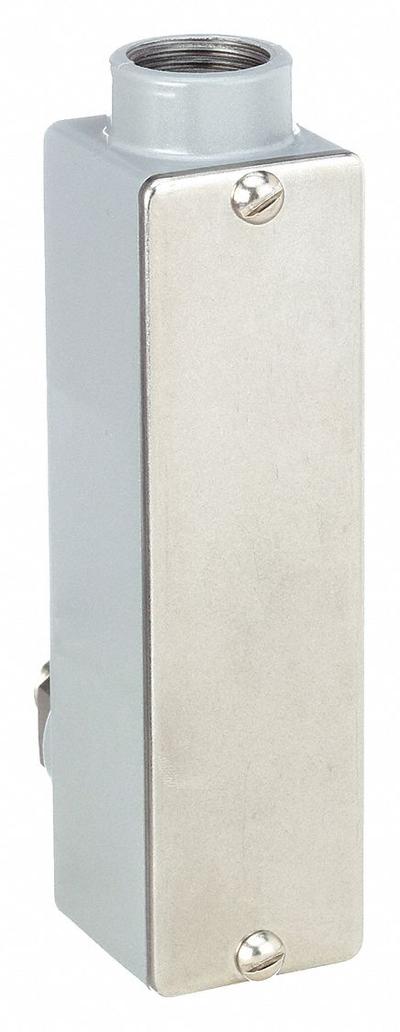

Dwyer Pressure Transmitter: 0 psi to 100 psi, 4 to 20mA DC, Screw Terminals - Pressure Transmitters with Conduit Connection
DwyerPressure Transmitters with Conduit Connection

Dwyer Pressure Transmitter: 0 psi to 100 psi, 4 to 20mA DC, Screw Terminals

The Dwyer Series 626 Pressure Transmitter with Conduit Connection (MPN 626-10-CB-P1-E5-S1) is a 0 psi to 100 psi industrial transmitter with a 4 to 20mA DC output and screw terminals. It features an aluminum housing…

SKU 3G-OTH-178432

Brand
Dwyer
Item
Pressure Transmitter: 0 psi to 100 psi, 4 to 20mA DC, Screw Terminals
Category
Pressure Transmitters with Conduit Connection
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dwyer
Manufacturer Part Number
626-10-CB-P1-E5-S1
Series
626
Type
Screw Terminals
DC
4 to 20mA
Output
4 to 20mA DC
Accuracy
±0.25%
Male NPT
1/4 in
Overpressure
500 psig
Housing Material
Aluminum
Process Connection Type
NPT
Process Connection Gender
Male
Calibration Certificate Included
No NIST-Traceable Calibration Certificate Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dwyer Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dwyer Series 626 Pressure Transmitter with Conduit Connection (MPN 626-10-CB-P1-E5-S1) is a 0 psi to 100 psi industrial transmitter with a 4 to 20mA DC output and screw terminals. It features an aluminum housing, a 1/4 in male NPT process connection, an accuracy of ±0.25%, and an overpressure rating of 500 psig. No NIST-traceable calibration certificate is included.

Used in

Common applications for Dwyer
Combustion air-filter monitoring — Magnehelic Series 2000 on burner air-intake filter banks
Clean-room and pharmaceutical pressurisation — Magnehelic / Capsuhelic differential-pressure gauges
HVAC fan-discharge static pressure — Mark II inclined-vertical manometers on AHU test points
Filter-blockage alarms — Photohelic Series 3000 combined gauge/switch on air-handling units
BMS-integrated pressure monitoring — Digihelic DH3 with 4–20 mA output for building management

Dwyer Products

3G Electric supplies Dwyer pressure transmitters with conduit connection. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
