DRANETZ Current Clamp Probe: CAT III 1000V/CAT IV 600V, Proprietary, 15 in Jaw Opening - Flexible Current Probes
DRANETZFlexible Current Probes

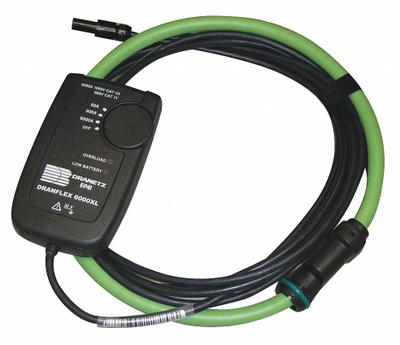

DRANETZ Current Clamp Probe: CAT III 1000V/CAT IV 600V, Proprietary, 15 in Jaw Opening

The DRANETZ DRANFLEX6000XLB48 is a flexible current probe with a CAT IV 600V safety rating and a 15-inch jaw opening. It features a proprietary connector type and is designed for use with DRANETZ power quality…

SKU 3G-OTH-170667

Brand
DRANETZ
Item
Current Clamp Probe: CAT III 1000V/CAT IV 600V, Proprietary, 15 in Jaw Opening
Category
Flexible Current Probes
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

DRANETZ
Manufacturer Part Number
DRANFLEX6000XLB48
Type
Proprietary, Flex
Jaw Opening
15 in
Safety Rating
CAT IV 600V
Connector Type
Proprietary
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

DRANETZ Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DRANETZ DRANFLEX6000XLB48 is a flexible current probe with a CAT IV 600V safety rating and a 15-inch jaw opening. It features a proprietary connector type and is designed for use with DRANETZ power quality analyzers. This probe enables non-invasive current measurements in high-voltage environments.

Used in

Common applications for DRANETZ
Industrial power quality auditing — DRANETZ HDPQ-P-VAFLEX3KPKG analyzer for harmonic and transient analysis on 480V distribution panels.
Utility substation monitoring — DRANETZ DRANFLEX3000XLB48 flexible probe for measuring high-current feeders up to 3000A.
Data center electrical troubleshooting — DRANETZ TR-2510B clamp-on probe for verifying UPS output and branch circuit loads.
Manufacturing plant compliance testing — DRANETZ HDPQ-P-VA10PKG kit for IEEE 519 harmonic limit verification on motor drives.
Renewable energy system commissioning — DRANETZ DRANFLEX6000XLB48 probe for measuring inverter output currents up to 6000A.
Building electrical maintenance — DRANETZ HDPQ-P-GAFLEX3KPKG for periodic power quality surveys on main switchboards.
