Dayton Thermocouple Connector: Jack, For Type E Thermocouple Type, Mini Jack, 2 Pins - Thermocouple Jacks & Connectors
DaytonThermocouple Jacks & Connectors

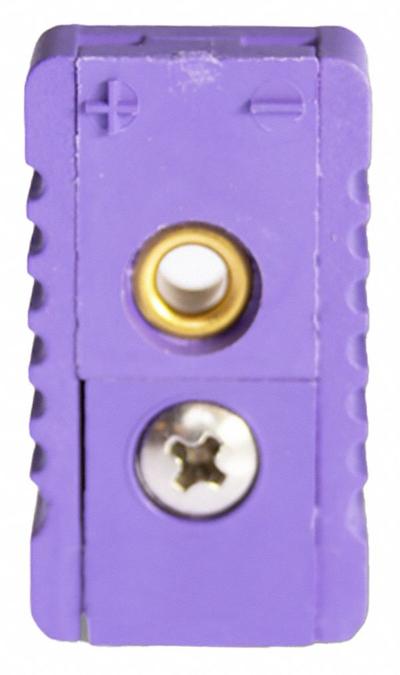

Dayton Thermocouple Connector: Jack, For Type E Thermocouple Type, Mini Jack, 2 Pins

The DAYTON Thermocouple Connector: Jack (SKU 794F55) is a mini jack connector designed for Type E thermocouples. It features a thermoplastic nylon body, constantan contact material, and two flat pins. The connector…

SKU 3G-OTH-179957

Brand
Dayton
Item
Thermocouple Connector: Jack, For Type E Thermocouple Type, Mini Jack, 2 Pins
Category
Thermocouple Jacks & Connectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
794F55
Type
For Type E Thermocouple Type, Mini Jack, Flat, Flat
Pins
2
Color
Purple
Pin Shape
Flat
Product Type
Jack
Body Material
Thermoplastic Nylon
Connector Type
Mini Jack
Contact Material
Constantan
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Thermocouple Connector: Jack (SKU 794F55) is a mini jack connector designed for Type E thermocouples. It features a thermoplastic nylon body, constantan contact material, and two flat pins. The connector is purple in color and is manufactured by DAYTON.
