Dayton Definite Purpose Magnetic Contactor: 3 Poles, 24V AC, 50 A - Non-Reversing Definite Purpose Contactors
DaytonNon-Reversing Definite Purpose Contactors

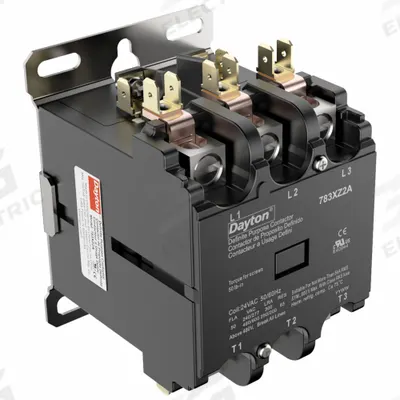

Dayton Definite Purpose Magnetic Contactor: 3 Poles, 24V AC, 50 A

The DAYTON Definite Purpose Magnetic Contactor (MPN 783XZ2) is a non-reversing, three-pole contactor with a 24V AC coil and a 50 A rating. Designed as an HVACR definite purpose contactor, it features a 3NO main pole…

SKU 3G-OTH-43130

Brand
Dayton
Item
Definite Purpose Magnetic Contactor: 3 Poles, 24V AC, 50 A
Category
Non-Reversing Definite Purpose Contactors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
783XZ2
Phase
Three
Coil Voltage
24V AC
Mounting Style
Through Panel
Contactor Style
HVACR Definite Purpose Contactor
Main Pole Contact Form
3NO
Maximum Voltage Rating
600V AC
Terminal Connection Type
Box Lugs
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Definite Purpose Magnetic Contactor (MPN 783XZ2) is a non-reversing, three-pole contactor with a 24V AC coil and a 50 A rating. Designed as an HVACR definite purpose contactor, it features a 3NO main pole contact form, a maximum voltage rating of 600V AC, and box lug terminal connections. This through-panel mounted unit is suitable for three-phase applications.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the DAYTON Definite Purpose Magnetic Contactor used for?

The DAYTON Definite Purpose Magnetic Contactor (MPN 783XZ2) is used in HVACR systems to switch three-phase loads such as compressors, condenser fans, and air handlers. Its 24V AC coil and 50 A rating make it suitable for commercial refrigeration and air-conditioning equipment requiring reliable, non-reversing motor control.

What are the specifications of the DAYTON 783XZ2 contactor?

The DAYTON 783XZ2 is a three-pole, non-reversing definite purpose contactor with a 24V AC coil, 50 A rating, and 600V AC maximum voltage. It features a 3NO main pole contact form, box lug terminals, and through-panel mounting. This HVACR-style contactor is designed for three-phase applications.

Where to buy the DAYTON 783XZ2 contactor worldwide?

You can source the DAYTON 783XZ2 definite purpose contactor from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide competitive pricing and reliable sourcing for this HVACR component.

How to install the DAYTON definite purpose contactor?

Mount the DAYTON 783XZ2 contactor through a panel using the provided hardware. Connect three-phase power and load wires to the box lug terminals, and apply 24V AC to the coil terminals. Ensure the contactor is de-energized during installation. Follow standard electrical safety practices and consult the manufacturer's wiring diagram for proper connections.
