Dayton Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity - IEC Thermal Overload Relays
DaytonIEC Thermal Overload Relays

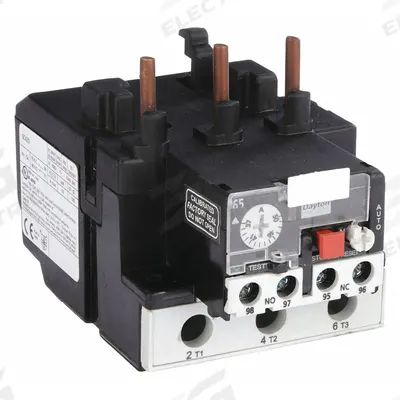

Dayton Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity

The DAYTON Overload Relay (SKU 6EAZ9) is a three-pole IEC thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts and phase…

SKU 3G-OTH-42038

Brand
Dayton
Item
Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity
Category
IEC Thermal Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
6EAZ9
Type
1NO/1NC, Phase Loss Sensitivity, 37 A – 50 A
Poles
3
Compatible Contactors
Dayton (40 to 95 Amp Models)
Auxiliary Contact Form
1NO/1NC
Phase Loss Sensitivity
Yes
Thermal Units Required
None (Relay Includes Integrated Bimetallic Elements)
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Overload Relay (SKU 6EAZ9) is a three-pole IEC thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts and phase loss sensitivity, and is compatible with Dayton contactors in the 40 to 95 Amp models. This relay is rated for a current range of 37 A to 50 A.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the DAYTON Overload Relay 6EAZ9 used for?

The DAYTON Overload Relay 6EAZ9 protects three-phase motors from thermal overload and phase loss conditions. It is used in industrial motor control panels, conveyors, pumps, and HVAC equipment. The integrated bimetallic elements eliminate separate thermal units, simplifying installation and maintenance.

What are the specifications of the DAYTON Overload Relay 6EAZ9?

The DAYTON Overload Relay 6EAZ9 is a three-pole IEC thermal overload relay rated 37 A to 50 A. It has 1NO/1NC auxiliary contacts, phase loss sensitivity, and integrated bimetallic elements. It is compatible with Dayton contactors in the 40 to 95 Amp models. The manufacturer part number is 6EAZ9.

Where to buy the DAYTON Overload Relay 6EAZ9 worldwide?

You can source the DAYTON Overload Relay 6EAZ9 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we source and deliver this relay to your location.

How to select the correct DAYTON Overload Relay for a contactor?

Select the DAYTON Overload Relay based on the motor full-load current and contactor compatibility. The 6EAZ9 model covers 37 A to 50 A and works with Dayton contactors rated 40 to 95 Amps. Ensure the relay's current range matches the motor nameplate and that auxiliary contacts meet your control circuit needs.
