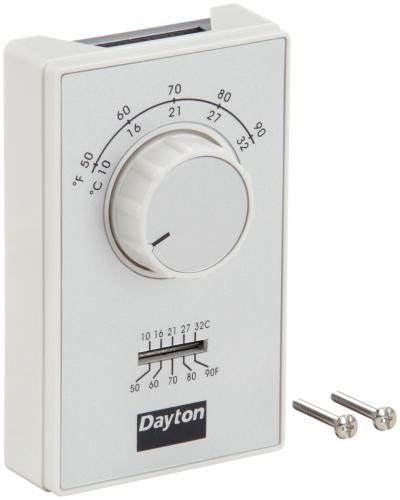

Dayton Line Volt Mechanical Tstat: Heat Only, On-Off, 50° to 90°F, Exposed Dial - Analog Thermostats
DaytonAnalog Thermostats

Dayton Line Volt Mechanical Tstat: Heat Only, On-Off, 50° to 90°F, Exposed Dial

The DAYTON Line Volt Mechanical Tstat: Heat Only (SKU 4PU49, MPN 4PU49C) is an analog thermostat designed for heat-only applications. It features a single-stage (1H) on-off control with an exposed dial, SPST switch…

SKU 3G-OTH-70260

Brand
Dayton
Item
Line Volt Mechanical Tstat: Heat Only, On-Off, 50° to 90°F, Exposed Dial
Category
Analog Thermostats
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
4PU49C
Type
On-Off, 50° to 90°F, Exposed Dial, 1H
AC
120 to 277V
Stages
1H
Voltage
120 to 277V AC
Application
Heat Only
Control Type
Exposed Dial
Fan Settings
No Fan Setting
System Settings
On-Off
Switch Type/Action
SPST, Open on Rise
Temperature Control Range
50° to 90°F
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Line Volt Mechanical Tstat: Heat Only (SKU 4PU49, MPN 4PU49C) is an analog thermostat designed for heat-only applications. It features a single-stage (1H) on-off control with an exposed dial, SPST switch (open on rise), and a temperature control range of 50° to 90°F, operating at 120 to 277V AC.
