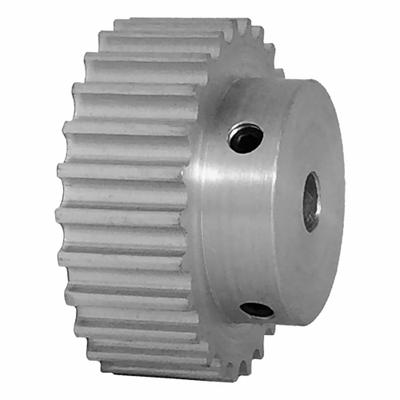

Dayton Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 26 Teeth, 5 mm Pitch - HTD Section Fixed-Bore Timing Pulleys with Hub

DaytonHTD Section Fixed-Bore Timing Pulleys with Hub

Dayton Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 26 Teeth, 5 mm Pitch

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features 26 teeth with a 5 mm pitch, fits a 9 mm belt width, and is made of…

SKU 3G-OTH-112483

Brand

Dayton

Item

Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 26 Teeth, 5 mm Pitch

Category

HTD Section Fixed-Bore Timing Pulleys with Hub

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

Dayton

Manufacturer Part Number

26-5M09-6A3

Type

Fixed, For 9 mm Belt Wd, Aluminum

Pitch

5 mm

Teeth

26

Finish

Clear Anodized

For Belt Series

Powerhouse®

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Dayton Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features 26 teeth with a 5 mm pitch, fits a 9 mm belt width, and is made of aluminum with a clear anodized finish (MPN 26-5M09-6A3).
