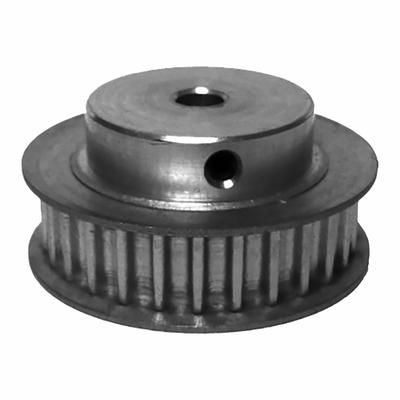

Dayton Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 28 Teeth, 5 mm Pitch - HTD Section Fixed-Bore Timing Pulleys with Hub
DaytonHTD Section Fixed-Bore Timing Pulleys with Hub

Dayton Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 28 Teeth, 5 mm Pitch

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features 28 teeth with a 5 mm pitch for a 9 mm belt width, and is constructed…

SKU 3G-OTH-106034

Brand
Dayton
Item
Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 28 Teeth, 5 mm Pitch
Category
HTD Section Fixed-Bore Timing Pulleys with Hub
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
28-5M09-6FA3
Type
Fixed, For 9 mm Belt Wd, Aluminum
Pitch
5 mm
Teeth
28
Finish
Clear Anodized
For Belt Series
Powerhouse®
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features 28 teeth with a 5 mm pitch for a 9 mm belt width, and is constructed from aluminum with a clear anodized finish.
