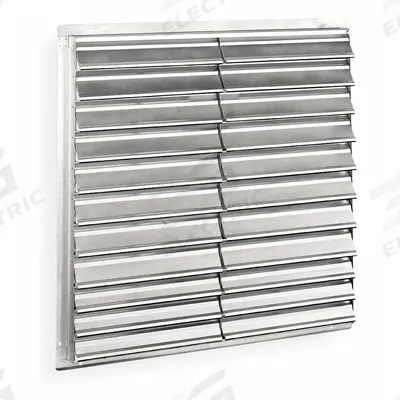

Dayton 57"H-W 6 1/4"L Aluminum Backdraft Damper: For 54 in Fan, Double Panel, 57 in H - Wall-Mount Backdraft Dampers
DaytonWall-Mount Backdraft Dampers

Dayton 57"H-W 6 1/4"L Aluminum Backdraft Damper: For 54 in Fan, Double Panel, 57 in H

The Dayton 57"H-W 6 1/4"L Aluminum Backdraft Damper (SKU 3C313) is a wall-mount backdraft damper with flat blades, designed for horizontal airflow and vertical mounting. It has a maximum air velocity of 2500 fpm and…

SKU 3G-OTH-76998

Brand
Dayton
Item
57"H-W 6 1/4"L Aluminum Backdraft Damper: For 54 in Fan, Double Panel, 57 in H
Category
Wall-Mount Backdraft Dampers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
3C313
Type
Double Panel, 57 in W
D
3 in
H
57 in
Blade Type
Flat Blade
Airflow Direction
Horizontal
Mounting Position
Vertical
Maximum Air Velocity
2500 fpm
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 57"H-W 6 1/4"L Aluminum Backdraft Damper (SKU 3C313) is a wall-mount backdraft damper with flat blades, designed for horizontal airflow and vertical mounting. It has a maximum air velocity of 2500 fpm and is intended for use with a 54-inch fan.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the Dayton 57"H-W 6 1/4"L Aluminum Backdraft Damper used for?

The Dayton backdraft damper is used to prevent reverse airflow in ventilation systems, allowing air to flow in one direction only. It is designed for horizontal airflow and vertical mounting, commonly installed with a 54-inch fan in industrial exhaust or intake applications.

What are the specifications of the Dayton 3C313 backdraft damper?

The Dayton 3C313 is a wall-mount backdraft damper with flat aluminum blades, measuring 57 inches high by 6 1/4 inches long by 3 inches deep. It supports a maximum air velocity of 2500 fpm, is designed for horizontal airflow, and mounts vertically.

Where to buy the Dayton 3C313 backdraft damper worldwide?

3G Electric supplies the Dayton 3C313 backdraft damper to customers worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to install a Dayton wall-mount backdraft damper?

Install the Dayton damper in a vertical position with the airflow direction horizontal. Secure the frame to the wall opening, ensuring the blades open freely with airflow. Follow standard HVAC practices for sealing and fastening. For specific guidance, consult the manufacturer's manual.
