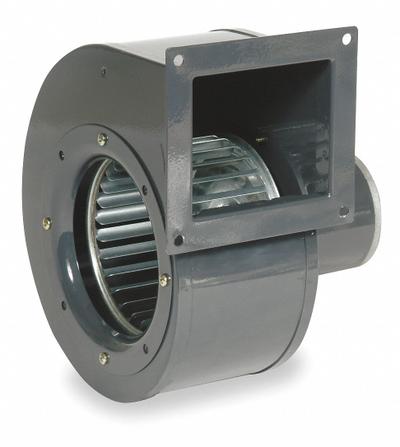

Dayton Blower: 5 1/8 in Wheel Dia, Direct Drive, 224 cfm, 1/20 hp, 115V AC, 1 Ph - OEM Direct-Drive Blowers with Drive
DaytonOEM Direct-Drive Blowers with Drive

Dayton Blower: 5 1/8 in Wheel Dia, Direct Drive, 224 cfm, 1/20 hp, 115V AC, 1 Ph

The Dayton OEM Direct-Drive Blower with Drive (SKU 1TDR3) is a 5 1/8 in wheel diameter, direct-drive blower rated at 224 cfm and 1/20 hp. It operates on 115V AC, single phase, with an open motor housing and clockwise…

SKU 3G-OTH-74225

Brand
Dayton
Item
Blower: 5 1/8 in Wheel Dia, Direct Drive, 224 cfm, 1/20 hp, 115V AC, 1 Ph
Category
OEM Direct-Drive Blowers with Drive
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
1TDR3
Type
Direct Drive, 224 cfm, 1/20 hp, Open, OEM Repl
AC
115V
Ph
1
Rotation
CW
Nominal Voltage
115V AC
Motor Housing Design
Open Motor
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton OEM Direct-Drive Blower with Drive (SKU 1TDR3) is a 5 1/8 in wheel diameter, direct-drive blower rated at 224 cfm and 1/20 hp. It operates on 115V AC, single phase, with an open motor housing and clockwise rotation. This OEM replacement blower is designed for straightforward integration into compatible equipment.
