Dayton Gearmotor: Parallel, 12V DC, TENV, 25 RPM, 16 in-lb Max Torque - Parallel Shaft Subfractional DC Gearmotors
DaytonParallel Shaft Subfractional DC Gearmotors

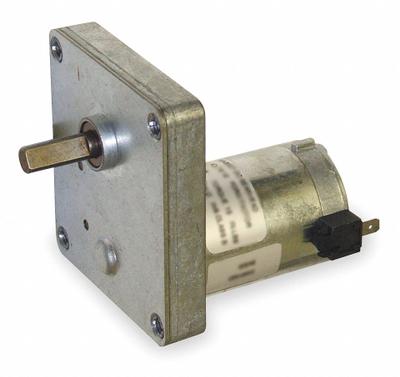

Dayton Gearmotor: Parallel, 12V DC, TENV, 25 RPM, 16 in-lb Max Torque

The DAYTON DC Gearmotor: Parallel is a parallel shaft subfractional DC gearmotor from DAYTON, featuring a permanent magnet DC motor type. It operates at 12V DC with a TENV enclosure, delivering 25 RPM and a maximum…

SKU 3G-OTH-118758

Brand
Dayton
Item
Gearmotor: Parallel, 12V DC, TENV, 25 RPM, 16 in-lb Max Torque
Category
Parallel Shaft Subfractional DC Gearmotors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
1LNH1
Type
TENV, 25 RPM, 16 in-lb Max Torque
DC
12V
Motor Type
Permanent Magnet DC
Input Horsepower
1/150 hp
Full Load Current
1 A
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON DC Gearmotor: Parallel is a parallel shaft subfractional DC gearmotor from DAYTON, featuring a permanent magnet DC motor type. It operates at 12V DC with a TENV enclosure, delivering 25 RPM and a maximum torque of 16 in-lb, with an input horsepower of 1/150 hp. The motor has a full load current of 1 A.
