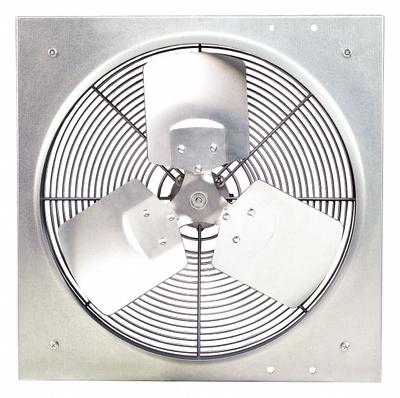

Dayton Exhaust Fan: Direct Drive, 14 in Blade, 1/20 hp, 1,152 cfm, 115V AC, 1 ph - Standard Direct-Drive Panel Exhaust Fans
DaytonStandard Direct-Drive Panel Exhaust Fans

Dayton Exhaust Fan: Direct Drive, 14 in Blade, 1/20 hp, 1,152 cfm, 115V AC, 1 ph

The DAYTON 10D955 is a standard direct-drive panel exhaust fan with a 14-inch blade, 1/20 hp motor, and 1,152 cfm airflow. It operates on 115V AC, single-phase power, and features a totally enclosed air-over motor…

SKU 3G-OTH-80369

Brand
Dayton
Item
Exhaust Fan: Direct Drive, 14 in Blade, 1/20 hp, 1,152 cfm, 115V AC, 1 ph
Category
Standard Direct-Drive Panel Exhaust Fans
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
10D955
Type
1/20 hp, 1,152 cfm, 1 ph, Totally Enclosed
AC
115V
Blade
14 in
Assembled
Assembled
Guard Type
Intake
Frame Finish
Galvanized
Frame Material
Steel
Motor Enclosure
Totally Enclosed Air Over
Enclosure Design
Totally Enclosed Motor
Motor Insulation
Class B
Number of Speeds
1
Nameplate Voltage
115V AC
Guard Type Subheads
With Intake Guards
Method of Construction
Stamped
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON 10D955 is a standard direct-drive panel exhaust fan with a 14-inch blade, 1/20 hp motor, and 1,152 cfm airflow. It operates on 115V AC, single-phase power, and features a totally enclosed air-over motor with Class B insulation. The fan has a galvanized steel frame, stamped construction, and includes intake guards. It is supplied assembled.
