CRYDOM Dual Solid State Relay: Surface Mounted - Surface-Mounted Relays
CRYDOMSurface-Mounted Relays

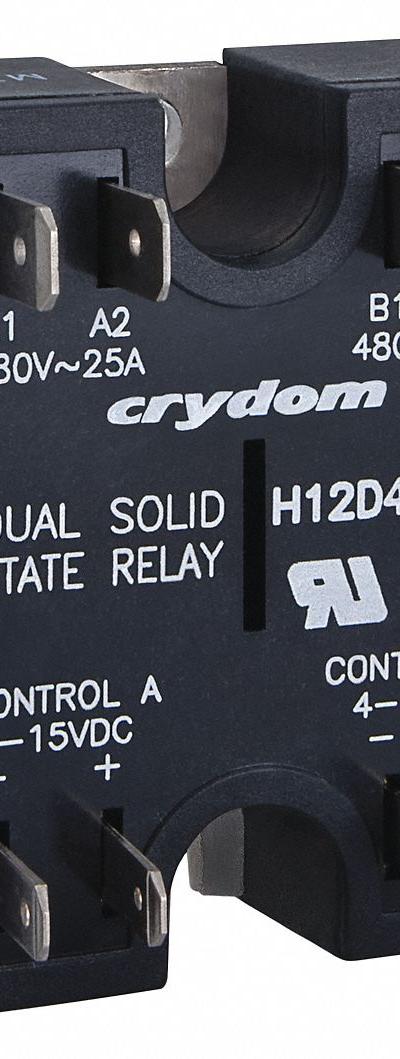

CRYDOM Dual Solid State Relay: Surface Mounted

The CRYDOM Dual Solid State Relay is a panel-mounted, surface-mounted relay with a DC input current of 12 mA and an AC output voltage range of 48 to 530V AC. It features a Form A switch configuration, SCR output, and…

SKU 3G-OTH-38255

Brand
CRYDOM
Item
Dual Solid State Relay: Surface Mounted
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CRYDOM
Brand
CRYDOM
Finger Safe
No
Current Type
DC
Input Current
12 mA
Mounting Style
Panel
Output Voltage
48 to 530V AC
Switch Configuration
Form A
Voltage/Current Type
AC Output
Electrical Connection
Screw Clamp
Manufacturer Part Number
H12D4825D
Maximum Output Current without Heat Sink
Not Recommended
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CRYDOM Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CRYDOM Dual Solid State Relay is a panel-mounted, surface-mounted relay with a DC input current of 12 mA and an AC output voltage range of 48 to 530V AC. It features a Form A switch configuration, SCR output, and screw clamp electrical connection, with a maximum output current of 25 A (not recommended for use without a heat sink). This relay is not finger-safe and is designed for AC output applications.

Used in

Common applications for CRYDOM
Industrial burner control — CRYDOM CL240A10C SSR for modulating gas valve actuation
Pump motor switching — CRYDOM C53TP25CH-10 SSR for single-phase AC motor start/stop
Process heating — CRYDOM EL240A10R-05 SSR for electric heater bank control
DIN-rail thermal management — CRYDOM HS151DR heat sink with fan for SSR cooling in control panels
Three-phase load switching — CRYDOM CD2450W2V dual SSR for two-phase control in industrial ovens

CRYDOM Products

3G Electric supplies CRYDOM surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
