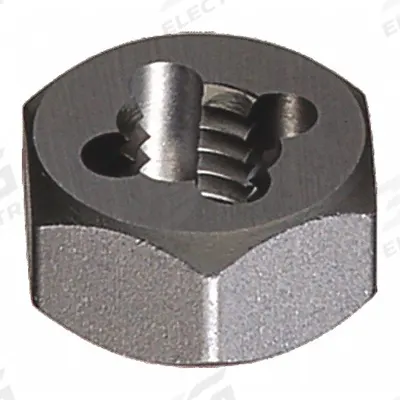

CLE-LINE Hex Threading Die: 1/4"-28 UNF, 5/8 in Hex Wd, High Speed Steel (MPN C77602)
SKU 3G-OTH-235370
Need installation or engineering help?
Ask a question
Frequently Asked Questions
What is a CLE-LINE hex threading die used for?
A CLE-LINE hex threading die is used to cut or repair external threads on bolts, studs, and rods. The 1/4"-28 UNF size is common in automotive, aerospace, and general maintenance applications where fine-pitch threads are required. Its hexagonal shape allows easy turning with a standard wrench.
What are the specifications of the CLE-LINE C77602 hex die?
The CLE-LINE C77602 is a solid hex rethreading die with a thread size of 1/4"-28 UNF (Unified Fine). It has a hex width of 5/8 inch and is made from high-speed steel (HSS) for durability. The manufacturer part number is C77602, and it is designed for manual thread repair or cutting.
Where to buy CLE-LINE hex threading dies worldwide?
CLE-LINE hex threading dies are available to order through 3G Electric, a global industrial equipment distributor. We source and deliver this product worldwide, handling full logistics and customs clearance. Contact 3G Electric for availability and lead time on the C77602 die.
How to use a CLE-LINE hex rethreading die?
To use a CLE-LINE hex rethreading die, first clean the workpiece and apply cutting oil. Place the die over the damaged threads and turn it clockwise with a wrench, applying steady pressure. Reverse periodically to clear chips. For best results, ensure the die is aligned squarely with the bolt axis.
Used in
Common applications for CLE-LINECLE-LINE Products
3G Electric supplies CLE-LINE solid hex rethreading dies. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
