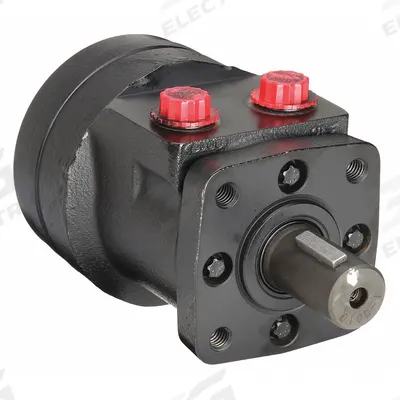

CHAR-LYNN Hydraulic Motor: S Series, 4-Bolt, 3.25 in Pilot, 4.5 cu in/rev
The CHAR-LYNN S Series Hydraulic Motor (MPN 103-1002) is a hydraulic motor with a 4-Bolt, 3.25 in Pilot mounting configuration. It is rated for 2000 psi and features a 1/2 in NPT port size, with a displacement of 4.5…
SKU 3G-OTH-168225
Need installation or engineering help?
Ask a question
Product Description
The CHAR-LYNN S Series Hydraulic Motor (MPN 103-1002) is a hydraulic motor with a 4-Bolt, 3.25 in Pilot mounting configuration. It is rated for 2000 psi and features a 1/2 in NPT port size, with a displacement of 4.5 cu in/rev and a maximum RPM of 762.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the CHAR-LYNN S Series hydraulic motor used for?
The CHAR-LYNN S Series hydraulic motor (MPN 103-1002) is used in industrial mobile and stationary hydraulic systems requiring reliable rotary power. Common applications include conveyors, winches, agricultural machinery, and material handling equipment where a compact, high-torque motor with a 4-bolt, 3.25 in pilot mounting is needed.
What are the specifications of the CHAR-LYNN 103-1002 hydraulic motor?
The CHAR-LYNN 103-1002 is an S Series hydraulic motor with a 4-bolt, 3.25 in pilot mounting. It has a displacement of 4.5 cu in/rev, maximum RPM of 762, rated pressure of 2000 psi, and 1/2 in NPT ports. This CHAR-LYNN motor is designed for medium-duty hydraulic circuits requiring consistent torque and speed.
Where to buy CHAR-LYNN hydraulic motors worldwide?
You can source the CHAR-LYNN S Series hydraulic motor (103-1002) through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact 3G Electric for pricing and lead time on this CHAR-LYNN motor.
How to select the right CHAR-LYNN hydraulic motor for an application?
To select the correct CHAR-LYNN S Series motor, match the displacement (4.5 cu in/rev) and maximum RPM (762) to your system's flow and torque requirements. Verify the mounting pattern (4-bolt, 3.25 in pilot) and port size (1/2 in NPT) fit your existing setup. Always confirm pressure rating (2000 psi) exceeds your circuit's maximum operating pressure.
Used in
Common applications for CHAR-LYNNCHAR-LYNN Products
3G Electric supplies CHAR-LYNN hydraulic motors. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
