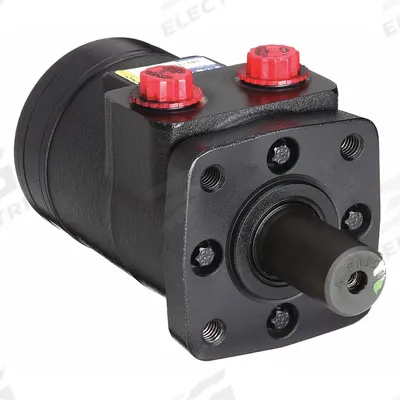

CHAR-LYNN Hydraulic Motor: H Series, 4-Bolt, 3.25 in Pilot, 5.9 cu in/rev - Hydraulic Motors
CHAR-LYNNHydraulic Motors

CHAR-LYNN Hydraulic Motor: H Series, 4-Bolt, 3.25 in Pilot, 5.9 cu in/rev

The CHAR-LYNN H Series Hydraulic Motor (MPN 101-1003) is a hydraulic motor with a 4-Bolt, 3.25 in Pilot mounting configuration. It features a displacement of 5.9 cu in/rev, a maximum RPM of 585, and a rated pressure…

SKU 3G-OTH-168230

Brand
CHAR-LYNN
Item
Hydraulic Motor: H Series, 4-Bolt, 3.25 in Pilot, 5.9 cu in/rev
Category
Hydraulic Motors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CHAR-LYNN
Manufacturer Part Number
101-1003
Type
4-Bolt, 5.9 cu in/rev, 585 RPM Max. RPM
Pilot
3.25 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CHAR-LYNN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CHAR-LYNN H Series Hydraulic Motor (MPN 101-1003) is a hydraulic motor with a 4-Bolt, 3.25 in Pilot mounting configuration. It features a displacement of 5.9 cu in/rev, a maximum RPM of 585, and a rated pressure of 1800 psi with 1/2 in NPT ports.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the CHAR-LYNN H Series Hydraulic Motor used for?

The CHAR-LYNN H Series Hydraulic Motor (MPN 101-1003) is used in industrial mobile and stationary hydraulic systems requiring reliable rotary power. Common applications include conveyors, winches, augers, and agricultural machinery where a compact, high-torque motor with a 4-Bolt, 3.25 in Pilot mounting is needed.

What are the specifications of the CHAR-LYNN H Series Hydraulic Motor 101-1003?

The CHAR-LYNN H Series Hydraulic Motor (MPN 101-1003) has a displacement of 5.9 cu in/rev, maximum RPM of 585, rated pressure of 1800 psi, and 1/2 in NPT ports. It features a 4-Bolt, 3.25 in Pilot mounting configuration. These specs are from the manufacturer's published data.

Where to buy CHAR-LYNN H Series Hydraulic Motor 101-1003 worldwide?

You can source the CHAR-LYNN H Series Hydraulic Motor (MPN 101-1003) through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this CHAR-LYNN motor.

How to select the correct CHAR-LYNN H Series Hydraulic Motor for my system?

To select the correct CHAR-LYNN H Series Hydraulic Motor, match the displacement (5.9 cu in/rev), maximum RPM (585), and rated pressure (1800 psi) to your system's flow and torque requirements. Verify the mounting configuration (4-Bolt, 3.25 in Pilot) and port size (1/2 in NPT) match your existing setup. Consult a hydraulic engineer for system compatibility.

Used in

Common applications for CHAR-LYNN
Agricultural machinery — CHAR-LYNN S Series hydraulic motor for auger drives in grain handling equipment
Construction equipment — CHAR-LYNN H Series rotary actuator for swing drives on mini-excavators
Industrial material handling — CHAR-LYNN SV1-16-CM solenoid valve for hydraulic clamping systems
Mobile hydraulics — CHAR-LYNN H Series motor for fan drive cooling systems in off-highway vehicles
Marine applications — CHAR-LYNN S Series motor for winch and capstan drives on deck equipment
Oil and gas — CHAR-LYNN seal kit 61334-000 for maintenance of hydraulic motors in wellhead control systems

CHAR-LYNN Products

3G Electric supplies CHAR-LYNN hydraulic motors. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
