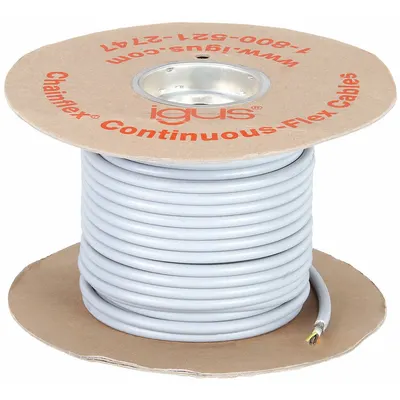

CHAINFLEX Control Cable: 20 AWG, 5 Conductors, 100 ft, PUR Jacket - Continuous Flexing Control Cables
CHAINFLEXContinuous Flexing Control Cables

CHAINFLEX Control Cable: 20 AWG, 5 Conductors, 100 ft, PUR Jacket

The CHAINFLEX CF78-UL Control Cable is a continuous flexing control cable with 20 AWG, 5 conductors, a PUR jacket, and a 1,000 V rating. It features copper conductors, a single conductor configuration, and includes a…

SKU 3G-OTH-53399

Also listed as: CF78UL0505100 · CF78 UL 05 05 100

Brand
CHAINFLEX
Item
Control Cable: 20 AWG, 5 Conductors, 100 ft, PUR Jacket
Category
Continuous Flexing Control Cables
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support — the Philippines

Delivery
5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment
Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to
Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

CHAINFLEX
Manufacturer Part Number
CF78-UL-05-05-100
Series
Chainflex
Standards
CE
Cable Series
CF78-UL
Product Type
Control Cable
Includes Ground
Yes
Conductor Material
Copper
Conductor Color Code
Black with White Numbers
Resistance Properties
Coolant Resistant
Conductor Configuration
Single
Minimum Bend Radius Factor - Fixed
4 x OD
Minimum Bend Radius Factor - E-Chain
6.8 x OD
Minimum Bend Radius Factor - Flexible
5 x OD

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CHAINFLEX Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CHAINFLEX CF78-UL Control Cable is a continuous flexing control cable with 20 AWG, 5 conductors, a PUR jacket, and a 1,000 V rating. It features copper conductors, a single conductor configuration, and includes a ground conductor. This cable is coolant resistant, CE certified, and has minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the CHAINFLEX CF78-UL control cable used for?

The CHAINFLEX CF78-UL control cable is designed for continuous flexing applications in industrial automation, robotics, and cable carriers (e-chain). Its PUR jacket and coolant resistance make it suitable for harsh environments like machine tools and assembly lines.

What are the specifications of the CHAINFLEX CF78-UL control cable?

This CHAINFLEX cable has 5 conductors of 20 AWG copper, a PUR jacket, and a 1,000 V rating. It includes a ground conductor, is CE certified, and has minimum bend radius factors of 4 x OD (fixed), 5 x OD (flexible), and 6.8 x OD (e-chain).

Where to buy the CHAINFLEX CF78-UL control cable worldwide?

3G Electric supplies the CHAINFLEX CF78-UL control cable worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this continuous flexing cable.

How to select the right CHAINFLEX control cable for e-chain applications?

For e-chain applications, ensure the cable's minimum bend radius factor (6.8 x OD for CF78-UL) matches your carrier's bend radius. Verify conductor count, AWG, voltage rating (1,000 V), and environmental resistance like coolant. CHAINFLEX cables are engineered for continuous flexing.

Used in

Common applications for CHAINFLEX
Automated assembly lines — Chainflex CF10 control cables for signal transmission in cable carriers
Robotic arms — Chainflex CF280ULH servo motor cables for power and feedback in high-flex joints
Material handling conveyors — Chainflex CF78-UL control cables with PUR jacket for oil resistance
CNC machining centers — Chainflex CF9-UL control cables rated at 1,000 V for spindle and axis control
Packaging machinery — Chainflex CFBUS-PVC-021 bus cables for CAN-Bus communication in continuous motion
Automotive manufacturing — Chainflex CF2 control cables with UV-resistant PUR jacket for outdoor gantry systems

CHAINFLEX Products

3G Electric supplies CHAINFLEX continuous flexing control cables. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
