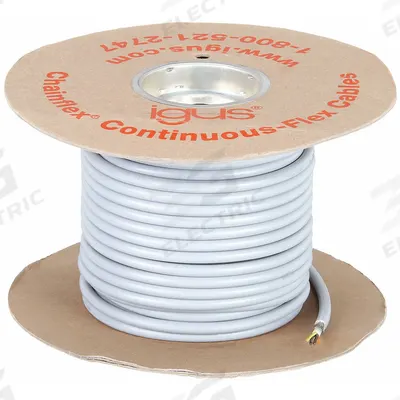

CHAINFLEX Control Cable: 18 AWG, 5 Conductors, 100 ft, PUR Jacket - Continuous Flexing Control Cables
CHAINFLEXContinuous Flexing Control Cables

CHAINFLEX Control Cable: 18 AWG, 5 Conductors, 100 ft, PUR Jacket

The CHAINFLEX Control Cable (SKU 24C063, MPN CF78-UL-07-05-100) is a continuous flexing control cable from the Chainflex series. It features 18 AWG, 5 conductors, a PUR jacket, and a 1,000 V rating, with copper…

SKU 3G-OTH-47563

Brand
CHAINFLEX
Item
Control Cable: 18 AWG, 5 Conductors, 100 ft, PUR Jacket
Category
Continuous Flexing Control Cables
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CHAINFLEX
Manufacturer Part Number
CF78-UL-07-05-100
Series
Chainflex
Standards
cRUus
Cable Series
CF78-UL
Product Type
Control Cable
Includes Ground
Yes
Conductor Material
Copper
Conductor Color Code
Black with White Numbers
Resistance Properties
Notch Resistance
Conductor Configuration
Single
Minimum Bend Radius Factor - Fixed
4 x OD
Minimum Bend Radius Factor - E-Chain
6.8 x OD
Minimum Bend Radius Factor - Flexible
5 x OD
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CHAINFLEX Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CHAINFLEX Control Cable (SKU 24C063, MPN CF78-UL-07-05-100) is a continuous flexing control cable from the Chainflex series. It features 18 AWG, 5 conductors, a PUR jacket, and a 1,000 V rating, with copper conductors and a single conductor configuration. The cable includes a ground, is notch resistant, and meets cRUus standards, with minimum bend radius factors of 4 x OD (fixed), 5 x OD (flexible), and 6.8 x OD (e-chain).

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Used in

Common applications for CHAINFLEX
Automated assembly lines — Chainflex CF10 control cables for signal transmission in cable carriers
Robotic arms — Chainflex CF280ULH servo motor cables for power and feedback in high-flex joints
Material handling conveyors — Chainflex CF78-UL control cables with PUR jacket for oil resistance
CNC machining centers — Chainflex CF9-UL control cables rated at 1,000 V for spindle and axis control
Packaging machinery — Chainflex CFBUS-PVC-021 bus cables for CAN-Bus communication in continuous motion
Automotive manufacturing — Chainflex CF2 control cables with UV-resistant PUR jacket for outdoor gantry systems
