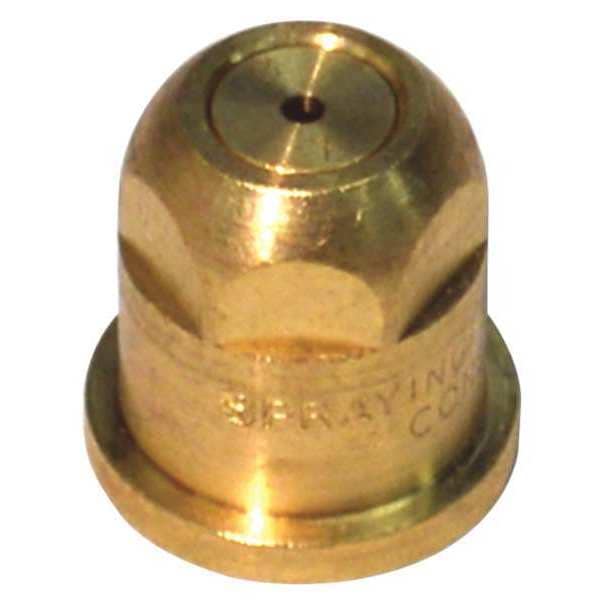

Euspray Full cone nozzle BB6 1/8M index 8 brass

Euspray BB6 is a full cone spray nozzle with 1/8M connection and 90° spray angle, manufactured in brass for reliable atomization in industrial cooling and coating applications. The removable cup design enables quick…

SKU 3G-CBM-06868

Also listed as: TEC 50010 · TEC-50010

Brand

Euspray

Item

Full cone nozzle BB6 1/8M index 8 brass

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

Euspray

type

full cone nozzle BB6

material

brass

connection

1/8M

spray angle

90°

removable cup

true

Datasheet Content

F-BB5                                M-BB5



                                                                                                    Dimensioni mm Dimensions mm Dimensions mm
                                                                                                          Abmessungen mm Dimensiones mm
                                                                                                  Ø                  H max             H1 max           L
                                                                                                  1/8                21                23               23
                                                                                                  1/4                28                30               30
                              F-BB6                                M-BB6                          3/8                30                34               33
                                                                                                  1/2                43                45               40




                                                                                                                 TECHNISCHE
CARATTERISTICHE BB5                 CHARACTERISTICS BB5                    CARACTERISTIQUES BB5                  EIGENSCHAFTEN BB5                       CARACTERISTICAS BB5
• Testina rimovibile.               • Removable cup.                       • Tête interchangeable.               • Abschraubberer Kopf 90°               • Cabeza intercambiable.
• Spruzzo a 90° rispetto            • 90° spray from the inlet             • Pulvérisation à 90° par               abgewinkelt.                          • Pulverización a 90°
  l’asse d’ingresso.                  axis.                                  rapport à l’axe d’alimen-                                                     respecto al eje de entrada.
                                                                             tation.

                                                                                                                 TECHNISCHE
CARATTERISTICHE BB6                 CHARACTERISTICS BB6                    CARACTERISTIQUES BB6                  EIGENSCHAFTEN BB6                       CARACTERISTICAS BB6
• Come BB5 ma con angolo            • Like BB5 but with wide               • Identique au type BB5               • Wie BB5, jedoch mit                   • Igual al tipo BB5 pero
  di spruzzo ampio.                   angle.                                 mais avec grand angle                 großem Spritzwinkel.                    con gran ángulo de
                                                                             de dispersion.                                                                aspersión.




                      TIPO UGELLO                                                     Pressione - Pressure - Pression - Druck - Presión (bar)                              bar
                      NOZZLE TYPE                           Ø1       Ø2
                     TYPE DE BUSE                                             0,5   0.75      1         1.5      2       3       4        5       6            7     0.5    1.5     5
                       DÜSENTYP                             mm      mm
                   TIPO DE BOQUILLA                                                  Portata - Capacity - Debit - Volumenstrom - Caudal (l/min)                        °      °         °

✼ 1/8 - F - BB5 - 2            1/8 - M - BB5 - 2             1.3     1.0     0.64    0.80    0.89        1.10    1.25    1.50    1.75     1.90    2.10        2.30    45    50    45
✼ 1/8 - F - BB5 - 3            1/8 - M - BB5 - 3             1.6     1.0     0.97    1.18    1.30        1.64    1.82    2.20    2.55     2.81    3.05        3.30    50    65    60
✼ 1/8 - F - BB5 - 3.5          1/8 - M - BB5 - 3.5           1.6     1.0     1.15    1.40    1.60        1.90    2.15    2.50    3.05     3.30    3.60        3.85    45    50    45
✼ 1/8 - F - BB5 - 5            1/8 - M - BB5 - 5             2.0     1.3     1.65    2.00    2.20        2.60    3.10    3.75    4.24     4.71    5.15        5.50    50    65    60

✼ 1/4 - F - BB5 - 6.5          1/4 - M - BB5 - 6.5           2.3     1.6     2.10    2.60    2.90        3.50    4.10    4.85    5.50     6.10 6.50 7.10             45     50    45
✼ 1/4 - F - BB5 - 10           1/4 - M - BB5 - 10            2.9     1.6     3.25    4.10    4.50        5.40    6.15    7.50    8.50     9.40 10.30 11.00           58     65    60

✼ 3/8 - F - BB5 - 9.5          3/8 - M - BB5 - 9.5           2.6     2.4     3.1     4.0     4.2         5.2     5.7     7.1     8.2      9.0     9.7        10.5     45    50     45
✼ 3/8 - F - BB5 - 15           3/8 - M - BB5 - 15            3.6     2.4     4.9     6.0     6.7         8.1     9.2    11.2    12.6     14.1    15.1        16.5     65    65     60
✼ 3/8 - F - BB5 - 20           3/8 - M - BB5 - 20            4.0     2.8     6.5     8.1     8.9        10.7    12.5    14.8    17.1     18.5    19.9        22.0     75    80     75
✼ 3/8 - F - BB5 - 22           3/8 - M - BB5 - 22            4.7     2.8     7.1     8.9     9.8        11.8    13.5    16.2    18.5     21.1    22.0        24.5     85    90     80

✼ 1/2 - F - BB5 - 16           1/2 - M - BB5 - 16            3.5     3.2     5.25    6.40    7.10        8.60    9.81   11.9    13.5     15.1    16.2        17.4     48    50    45
✼ 1/2 - F - BB5 - 25           1/2 - M - BB5 - 25            4.6     3.2     8.10   10.0    11.1        13.5    15.2    18.4    21.0     23.1    25.0        26.8     65    65    60
✼ 1/2 - F - BB5 - 32           1/2 - M - BB5 - 32            5.2     3.6    10.5    12.9    14.2        17.3    19.7    23.9    27.0     30.0    33.0        35.1     70    75    68
✼ 1/2 - F - BB5 - 40           1/2 - M - BB5 - 40            6.4     3.6    12.9    16.0    17.8        20.8    24.2    29.6    33.8     37.0    40.8        44.0     90    90    85
✼ 1/2 - F - BB5 - 50           1/2 - M - BB5 - 50            6.7     4.0    16.5    20.0    22.0        26.0    31.0    37.5    42.4     47.1    51.5        55.0     90    95    85

✼ 1/8 - F - BB6 - 4.3          1/8 - M - BB6 - 4.3           2.0     1.0     1.4     1.7     1.9         2.3     2.5     3.1     3.4      3.8     4.3         4.5    120   120    100
✼ 1/8 - F - BB6 - 8            1/8 - M - BB6 - 8             2.5     1.3     2.5     3.1     3.5         4.1     4.7     5.6     6.5      7.3     7.8         8.5    120   120    100

✼ 1/4 - F - BB6 - 14           1/4 - M - BB6 - 14            3.6     1.6     4.5     5.6     6.2         7.5     8.50 10.2      11.5     12.5    13.5        14.5    120   120    100

✼ 3/8 - F - BB6 - 20           3/8 - M - BB6 - 20            4.4     2.4     6.5     8.0     8.8        10.5    12.1    14.5    16.5     18.1    19.4        21.0    120   120    105

✼ 1/2 - F - BB6 - 35           1/2 - M - BB6 - 35            5.9     3.2    11.4    14.0    15.5        18.5    21.0    24.8    29.0     30.9    34.0        36.0    120   120    110
✼ 1/2 - F - BB6 - 50           1/2 - M - BB6 - 50            6.7     4.0    16.3    20.0    22.0        25.8    30.0    36.3    41.0     45.1    48.9        52.0    120   120    110
✼ Materiale a richiesta - Material on request - Articles sur demande - Materil nach Wunsch - Material a solicitar.
                                                                                                                                                                                            15

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Euspray Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

Where can I buy Euspray BB6 spray nozzles in the Philippines?

3G Electric Philippines sources Euspray BB6 1/8M full cone nozzles with delivery to Manila and Quezon City. We handle Bureau of Customs documentation and logistics. Contact us for lead time and PHP invoicing on part TEC50010.

What is the lead time for Euspray BB6 nozzles?

Lead time on request. 3G Electric Philippines arranges delivery to the Philippines with full customs support. We source industrial nozzles to order for food processing, packaging, and power generation applications in CALABARZON.

What spray angle does the Euspray BB6 nozzle provide?

The Euspray BB6 delivers a 90° full cone spray pattern. It features 1/8M brass connection and a removable cup design for quick maintenance and cleaning in cooling and coating production environments.

Used in

Common applications for Euspray

Heat-exchanger and condenser cooling — Euspray full cone nozzles (BB2, BB6) for uniform radial spray distribution

Industrial parts cleaning in machining shops — Euspray flat jet nozzles (C2, C3E) at 25°–110° angles for targeted impact and coverage

Dust suppression in bulk-material facilities — Euspray full cone nozzles for wide-angle misting over large floor or conveyor areas

Precision coating and adhesive application — Euspray flat jet nozzles (C3E stainless steel) with narrow angles (25°–40°) for controlled liquid distribution

Washdown and general plant cleaning — Euspray flat jet and full cone nozzles in brass for corrosion resistance to water and mild detergents

Chemical processing and acid-washing operations — Euspray stainless steel flat jet nozzles (C3E) for compatibility with caustic and acidic fluids
