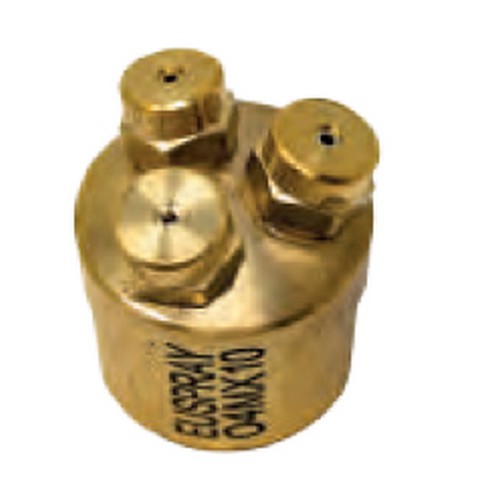

Euspray Hollow cone nozzle type A1 1/8M index 2 brass

Euspray hollow cone nozzle type A1 is a brass spray nozzle with 1/8M connection designed for industrial spray applications. It delivers 0.39 l/min at 1 bar with adjustable spray angle from 35° to 75°, suitable for…

SKU 3G-CBM-06858

Also listed as: TEC 40005 · TEC-40005

Brand

Euspray

Item

Hollow cone nozzle type A1 1/8M index 2 brass

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

Euspray

type

hollow cone nozzle A1

material

brass

connection

1/8M

spray angle

35° to 75°

flow rate at 1bar

0.39 l/min

Datasheet Content

I                                               I1




                                      F-A1



                                                                                      Ø                 I                  L                I1                L1              H
                                                                                      1/8               16                 22               22                28.5            9.5
                                                                                      1/4               20.5               28.5             25.5              33.5            12.5
                                                                                      3/8               24                 34               28.5              38              14.5
                                                                                      1/2               33.5               46               35                47.5            19
                                                                                      3/4               39.5               55.5             41                57              22
                                      M-A1                                            3/8 30.1          24                 34               28,5              38              19
                                                                                      3/8 50.3          24                 34               28.5              38              21.4




                                                                                                                       TECHNISCHE
    CARATTERISTICHE                     CHARACTERISTICS                       CARACTERISTIQUES                         EIGENSCHAFTEN                         CARACTERISTICAS
    • Testina rimovibile.               • Removable cap.                      • Tête interchangeable                   • Düse auswechselbar                  • Cabeza intercambiable.
    • Spruzzo a 90° rispetto I’asse     • 90° spray from the inlet            • Puivérisation à 90° par                  90° abgewinkelt.                    • Pulverización a 90° en
      d’ingresso.                         axis.                                 rapport à I’axe d’entrée du            • Auswechselbarer Kopf.                 relación al eje de entrada
                                                                                Iiquide.                                                                       del liquido.

    APPLICAZIONI                        APPLICATIONS                          APPLICATIONS                             ANWENDUNGEN                           APLICACIONES
    • Lavaggio e raffreddamento         • Washing and cooling of air          • Lavage et refroidissement              • Waschen und Kühlen                  • Lavado y enfriamiento de
      aria e gas.                         and gas.                              d’eau et de gas.                         von Luft und Gas.                     aire y gas.
    • Abbattimento polveri.             • Dust control.                       • Abbattement de poussières.             • Staubkontrolle                      • Control de polvo.
    • Trattamenti superficiali.         • Surface treatments.                 • Traitements de surface.                  (Staubbefeuchtung).                 • Tratamiento de superficies.
    • Umidificazioni.                   • Humidifications.                    • Humidifications.                       • Oberflächenbehandlung.              • Humidificación.
    • Processi chimici.                 • Chemical processes.                 • Traitements chimiques.                 • Befeuchtung chemische               • Tratamientos quimicos.
                                                                                                                         Verfahrenstechnik.


                                TIPO UGELLO                                                     Pressione - Pressure - Pression - Druck - Presión (bar)                       bar
                                NOZZLE TYPE                            Ø1        Ø2
                               TYPE DE BUSE                                              0.75       1      1.5         2     2.5     3        4       5        6        0.5   1.5     5
                                 DÜSENTYP                              mm        mm
                             TIPO DE BOQUILLA                                                  Portata - Capacity - Debit - Volumenstrom - Caudal (l/min)                 °     °         °

    1/8 F - A1 - 0.5                   1/8 M - A1 - 0.5                 0.9       1.1    0.19     0.22     0.27    0.32      0.36    0.39     0.45 0.51  0.55           35    60     70
    1/8 F - A1 - 1                     1/8 M - A1 - 1                   1.4       1.4    0.39     0.45     0.55    0.63      0.71    0.78     0.90 1.01  1.10           38    65     75
    1/8 F - A1 - 2                     1/8 M - A1 - 2                   2.1       2.0    0.78     0.90     1.11    1.28      1.43    1.56     1.81 2.02  2.22           53    60     70
    1/8 F - A1 - 3                     1/8 M - A1 - 3                   2.4       2.4    1.17     1.35     1.65    1.92      2.14    2.35     2.71 3.03  3.32           52    65     76
    1/8 F - A1 - 5                     1/8 M - A1 - 5                   3.0       3.3    1.96     2.28     2.76    3.22      3.60    3.95     4.56 5.10  5.58           54    68     75
    1/8 F - A1 - 8                     1/8 M - A1 - 8                   3.8       3.9    3.12     3.61     4.42    5.10      5.70    6.25     7.22 8.06  8.84           55    64     71
    1/8 F - A1 - 10                    1/8 M - A1 - 10                  4.4       4.4    3.90     4.51     5.52    6.37      7.13    7.80     9.02 10.1 11.0            58    64     72

    1/4 F - A1 - 1                     1/4 M - A1 - 1                   1.4       1.4    0.39     0.45     0.55    0.63 0.71  0.78            0.90 1.01  1.10                 54     68
    1/4 F - A1 - 2                     1/4 M - A1 - 2                   2.1       2.2    0.78     0.90     1.11    1.28 1.43  1.56            1.81 2.02  2.22           47    61     70
    1/4 F - A1 - 3                     1/4 M - A1 - 3                   2.4       24     1.17     1.35     1.65    1.92 2.14  2.35            2.71 3.03  3.32           50    64     76
    1/4 F - A1 - 5                     1/4 M - A1 - 5                   3.6       37     1.96     2.28     2.76    3.22 3.60  3.95            4.56 5.10  5.58           64    74     80
    1/4 F - A1 - 8                     1/4 M - A1 - 8                   4.1       40     3.12     3.61     4.42    5.10 5.70  6.25            7.22 8.06  8.84           60    70     72
    1/4 F - A1 - 10                    1/4 M - A1 - 10                  4.7       4.5    3.90     4.51     5.52    6.37 7.13  7.80            9.02 10.1 11.0            64    70     75
    1/4 F - A1 - 15                    1/4 M - A1 - 15                  5.8       5.1    5.87     6.78     8.30    9.60 10.7 11.7            13.5 15.1  16.6            64    70     73

    3/8 F - A1 - 5                     3/8 M - A1 - 5                   3.5       3.3    1.96     2.28     2.76    3.22      3.60    3.95     4.56    5.10     5.58     65    72     80
    3/8 F - A1 - 8                     3/8 M - A1 - 8                   4.5       4.2    3.12     3.61     4.42    5.10      5.70    6.25     7.22    8.06     8.84     63    71     75
    3/8 F - A1 - 10                    3/8 M - A1 - 10                  5.0       4.5    3.90     4.51     5.52    6.37      7.13    7.80     9.02   10.1     11.0      63    73     76
    3/8 F - A1 - 15                    3/8 M - A1 - 15                  6.1       5.4    5.87     6.78     8.30    9.60     10.7    11.7     13.5    15.1     16.6      65    73     75
    3/8 F - A1 - 20                    3/8 M - A1 - 20                  7.1       6.4    7.85     9.05    11.1    12.8      14.3    15.6     18.1    20.2     22.2      64    71     75
    3/8 F - A1 - 25                    3/8 M - A1 - 25                  7.4       7.4    9.86    11.4     13.9    16.1      18.0    19.7     22.8    25.5     28.0      64    71     75
    3/8 F - A1 - 30                    3/8 M - A1 - 30                  8.3       7.9   11.7     13.5     16.5    19.2      21.4    23.5     27.1    30.3     33.2      64    70     75
    3/8 F - A1 - 15 - 30.1             3/8 M - A1 - 15-30.1             6.1       7.9    9.05    10.4     12.8    14.8      16.5    18.1     20.9    23.4     25.6      41    51     55
    3/8 F - A1 - 25 - 30.1             3/8 M - A1 - 25-30.1             7.4       7.9   10.9     12.8     15.4    17.8      19.9    21.8     25.1    28.2     30.8      40    48     50
    3/8 F - A1 - 50 - 50.3             3/8 M - A1 - 50-50.3             8.7       9.5   19.6     22.8     27.6    32.2      36.0    39.5     45.6    51.0     55.8      73    75     78

    1/2 F - A1 - 25                    1/2 M - A1 - 25                  9.5       6.4    9.86    11.4     13.9    16.1      18.0    19.7     22.8    25.5     28.0      62    65     70
    1/2 F - A1 - 30                    1/2 M - A1 - 30                  9.5       7.5   11.7     13.5     16.5    19.2      21.4    23.5     27.1    30.3     33.2      68    70     75
    1/2 F - A1 - 40                    1/2 M - A1 - 40                  9.5       9.1   15.7     18.1     22.5    25.6      28.7    31.4     36.3    40.5     44.4      71    75     79
    1/2 F - A1 - 50                    1/2 M - A1 - 50                  9.5      11.1   19.6     22.8     27.6    32.2      36.0    39.5     45.6    51.0     55.8      75    80     83
    1/2 F - A1 - 60                    1/2 M - A1 - 60                  9.5      13.1   23.3     26.9     32.9    38.0      42.5    46.6     53.8    60.2     65.8      76    81     85

    3/4 F - A1 - 40                    3/4 M - A1 - 40                 12.7       7.9   15.7     18.1     22.5    25.6      28.7    31.4     36.3 40.5  44.4            71    72     73
    3/4 F - A1 - 50                    3/4 M - A1 - 50                 12.7       9.5   19.6     22.8     27.6    32.2      36.0    39.5     45.6 51.0  55.8            71    74     76
    3/4 F - A1 - 60                    3/4 M - A1 - 60                 12.7      11.1   23.3     26.9     32.9    38.0      42.5    46.6     53.8 60.2  65.8            75    77     80
    3/4 F - A1 - 70                    3/4 M - A1 - 70                 12.7      12.7   27.6     31.8     38.9    45.0      50.2    55.2     63.6 71.0  78.0            75    80     82
    3/4 F - A1 - 80                    3/4 M - A1 - 80                 12.7      14.3   31.2     36.1     44.2    51.0      56.8    62.5     72.2 80.6  88.4            78    82     85
    3/4 F - A1 - 90                    3/4 M - A1 - 90                 12.7      14.7   35.0     40.5     49.6    57.2      64.0    70.2     81.0 90.5  99.2            82    85     85
    3/4 F - A1 - 100                   3/4 M - A1 - 100                12.7      15.9   39.0     45.1     55.2    63.7      71.3    78.0     90.2 101  110              84    87     87
    3/4 F - A1 - 110                   3/4 M - A1 - 110                12.7      17.1   43.0     49.5     60.6    70.0      78.0    85.7     99.0 110  121              84    89     89
    3/4 F - A1 - 120                   3/4 M - A1 - 120                12.7      18.3   47.0     54.5     66.6    77.0      86.0    94.4    109   122  133              86    89     89


6

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Euspray Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

Where can I buy an Euspray TEC40005 hollow cone nozzle in the Philippines?

3G Electric Philippines supplies the Euspray A1 1/8M nozzle (TEC40005) with delivery to Manila and Quezon City. We handle all logistics, Bureau of Customs documentation, and PHP invoicing for Philippine procurement teams.

What is the lead time for the Euspray TEC40005 nozzle?

Lead time on request. 3G Electric sources this nozzle to order and manages all customs clearance for delivery to the Philippines. Contact us for a specific timeline and freight quotation.

What flow rate does the Euspray A1 nozzle deliver, and what applications suit it?

The Euspray TEC40005 delivers 0.39 l/min at 1 bar with a 35–75° adjustable spray angle. Ideal for cooling, coating, and cleaning systems in food processing and packaging plants across CALABARZON.
