CBMGas Valves & Regulation

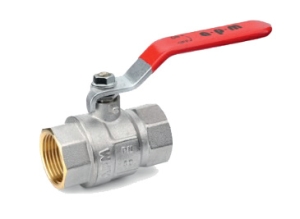

CBM Water ball valve 3/4"

CBM water ball valve, 3/4" connection size, is a reduced-way brass ball valve for water distribution systems. With Kv=30 and virgin PTFE seating, it provides reliable flow control and longevity in plumbing and…

SKU 3G-CBM-06207

Also listed as: ROB 40204 · ROB-40204

Brand

CBM

Item

Water ball valve 3/4"

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

CBM

30

type

reduced way ball valve FXF

material

brass P-OT 58 Pb 2 UNI 5705-65

seat material

virgin PTFE

connection size

3/4"

Datasheet Content

ROB40202 à 12
                                                   TECHNICAL
                                                     DATA


Valvola a sfera a passaggio ridotto FXF con leva (con farfalla art. 1000 T)
Reduce way ball valve FXF with lever (with butterfly handle art. 1000 T)

CARATTERISTICHE                                                     FEATURES
•   CORPO, SFERA E ASTA IN OTTONE P-                                   •    BRASS “P-OT 58 Pb 2 UNI 5705-65” BODY,
    OT 58 Pb 2 UNI 5705-65.                                                 BALL STEM.
•   SFERA LAVORATA CON UTENSILE IN                                     • BALL GROUND BY DIAMOND-TIPPED TOOL,
    DIAMANTE, NICHELATA E CROMATA.                                          NICKEL AND CHROMIUM PLATED.
•   SEDI IN P.T.F.E. VERGINE DIMENSIONATE                              •    VIRGIN P.T.F.E. SEATS WITH 7° MIN.
    CON ANGOLO DI TENUTA DI 7° MIN.                                         TIGHTNESS ANGLE.
•   GUARNIZIONE TENUTA ASTA: O-R IN                                    •    O-RING STEM PACKING IN NBR RUBBER.
    GOMMA NBR                                                          •    STEEL SHAPED LEVER WITH RED PLASTIC
•   LEVA DI COMANDO IN ACCIAIO IMBUTITO                                     COATING.
    VERNICIATA CON RESINA EPOSSIDICA                                   •    NICHEL PLATE FINISHING.
    ROSSA.                                                             •    THREADING TO ISO 228/1.
•   FINITURA     SUPERFICIALE    SABBIATA
    NICHELATA
•   FILETTATURE ISO 228/1


       DIMENSIONI PRINCIPALI                                                               LEADING DIMENSIONS


                                                   R”    1/4 3/8 1/2                  3/4     1   1¼ 1½ 2     2½   3   4
                                                   D              85                   85     115 115 158 158 173 237 237
                                                   D1                      54          54      70      -    -          -
                                                   H                       46         50.5     57     66   73         79.5     90   125 133

                                                   H1                       32         36      46      -    -          -
                                                   L                       47.5        53      61     67   77.5       89       116 135 158
                                                   M                       12          14     14.5 15.5    16         17       21   21   23
                                                   M1
                                                   F                       11          15      19     24   30         40       50   62   70



PRESSIONI DI ESERCIZIO A MAX 80° C                                     WORKING PRESSURES AT 80° C MAX
    PN 40
    PN 32                                                                                                                       p.s.i. 600
    PN 25                  *         *         *         *         *              *           *        *          *             p.s.i. 450
    PN 20                                                                                                                       p.s.i. 350
    PN 16                                                                                                                       p.s.i. 300
    PN 10                                                                                                                       p.s.i. 250
             1/4” 3/8” 1/2” 3/4”             1”        1 ¼”       1 ½”            2”         2 ½”     3”        4”              p.s.i. 150


            PERDITE DI CARICO                                                                     PRESSURE DROPS

                R”   1/4       3/8       1/2       3/4        1        1¼         1½              2   2½     3             4
                Kv    -                  9         15        30        57          94        160 265 390                525

                                                                                       2

                ∆P [ mm H2O] = 10.000 x G [mc/ h]
                                                              Kv

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

Where can I buy a CBM ROB40204 3/4" water ball valve in the Philippines?

3G Electric Philippines supplies the CBM ROB40204 ball valve with delivery to Manila, Quezon City, and surrounding areas. We handle all Bureau of Customs documentation and logistics. Contact us for availability and lead time on request.

What is the lead time for the CBM ROB40204 water ball valve?

Lead time depends on current stock and order volume. 3G Electric sources the ROB40204 from our network and arranges delivery to the Philippines. Contact us for a specific lead-time quote and PHP invoicing.

What are the key specifications of the CBM ROB40204 ball valve?

The CBM ROB40204 is a reduced-way brass ball valve (P-OT 58 Pb 2 UNI 5705-65) with 3/4" FXF connection, Kv=30, and virgin PTFE seating. It is designed for reliable flow control in water distribution and plumbing systems.

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.

Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.
