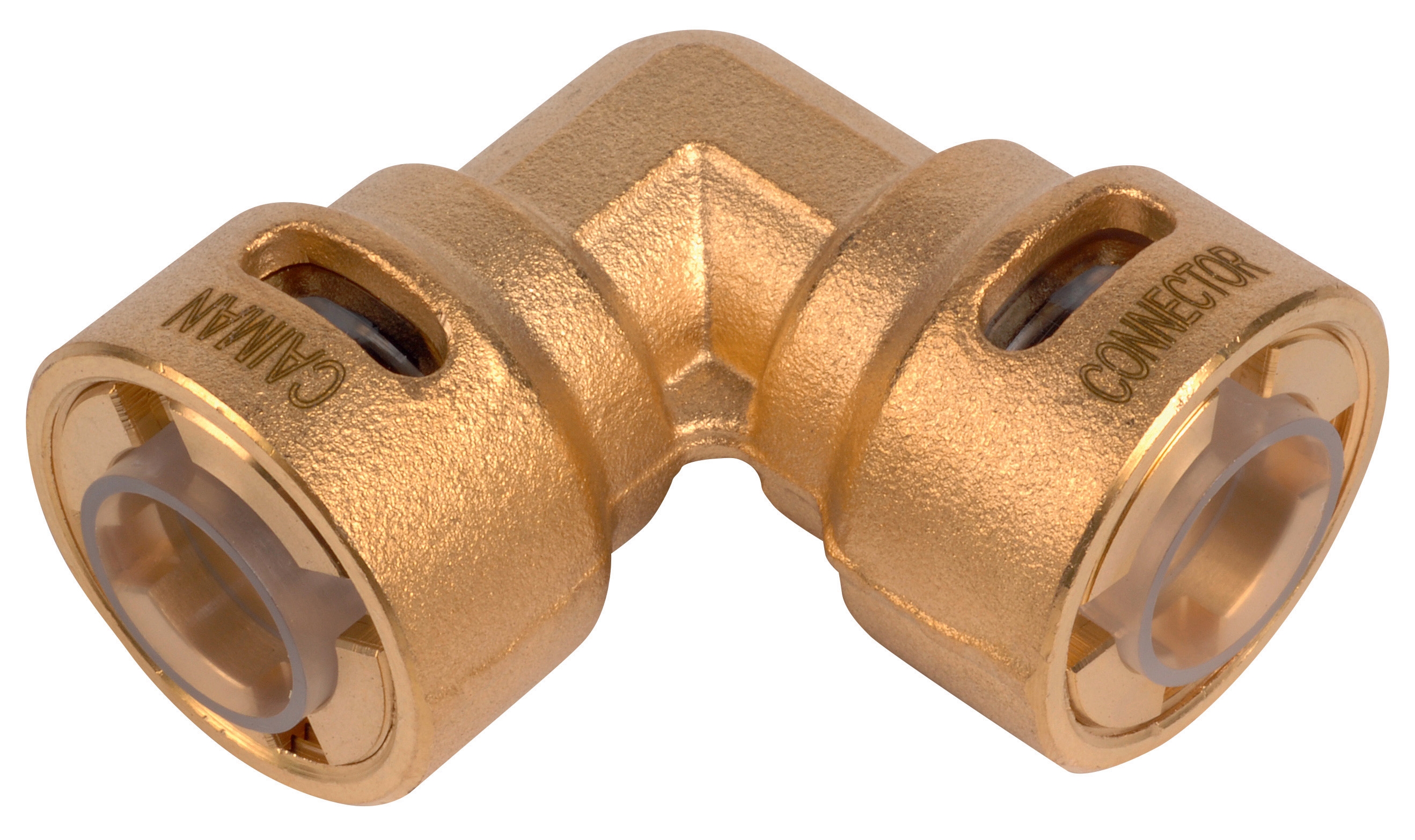

CBM Quick coupling 90° under pressure 1/4"

CBM quick coupling enables 90° connections under pressure up to 45 bar for HCFC and HFC refrigerant systems. The 1/4" bronze fitting operates reliably across -40°C to +120°C, making it essential for air conditioning…

SKU 3G-CBM-05672

Also listed as: RAC 54010 · RAC-54010

Brand

CBM

Item

Quick coupling 90° under pressure 1/4"

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

CBM

size

1/4"

type

90° quick coupling under pressure

max pressure

45 bar

refrigerants

HCFC & HFC gases

body material

bronze

temperature range

-40°C to +120°C

Datasheet Content
